Home >> Kia >> 2014 >> Forte5 SX, Automatic Trans >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 1.6L >> Manifold Absolute Pressure Sensor (MAPS) >> Repair Procedures >> Removal

Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Disconnect the manifold absolute pressure sensor connector (A).
  3. Remove the sensor from the surge tank by loosening the mounting bolts (B).

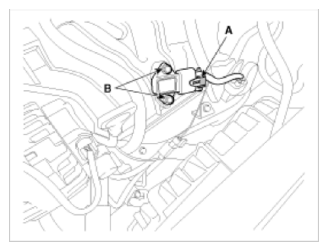

    Fig 1: Manifold Absolute Pressure Sensor Connector & Mounting Bolts
    G09750174Courtesy of KIA MOTORS AMERICA, INC.
