Automatic Transaxle Control System - 1.6L
>>
Components And Components Location
>>
Components Location
Components Location

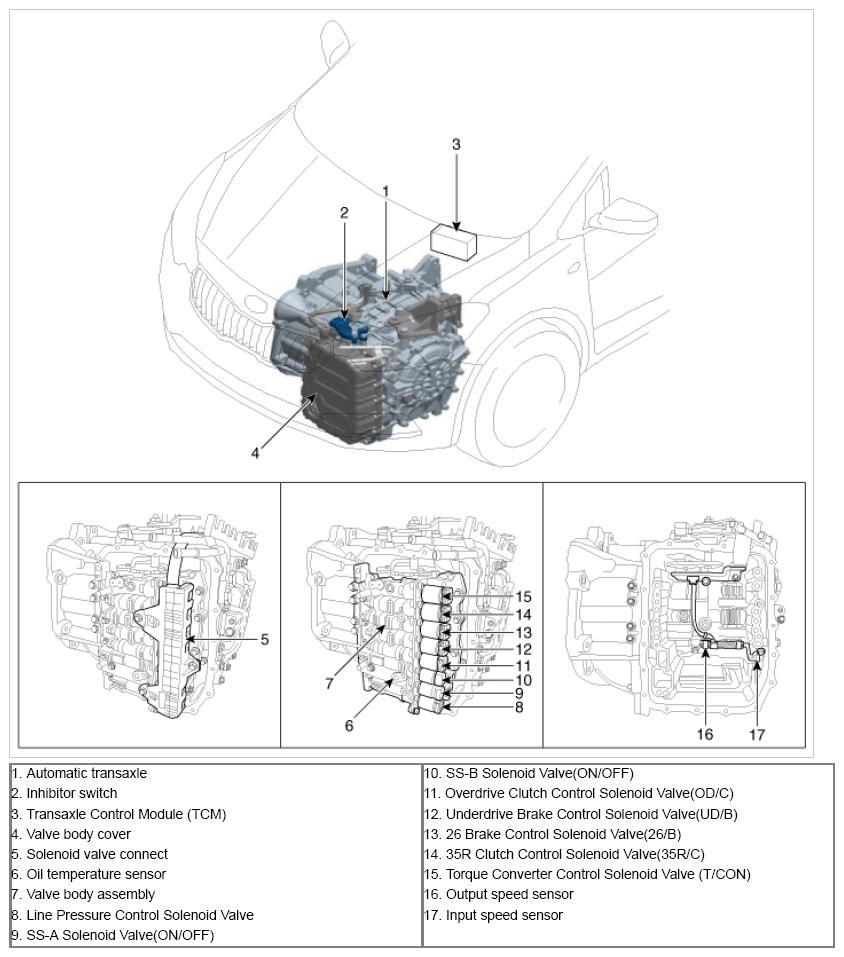

Fig 1: Automatic Transaxle System Components (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Fig 2: Automatic Transaxle System Components (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
