Testing A/C Compressor Function Using GDS (CLI024)
Publication date: 2014-06-01Reference number: CLI024
TESTING A/C COMPRESSOR FUNCTION USING GDS
TECHNICAL SERVICE BULLETIN
Reference Number(s): CLI024, Date of Issue:
June 1, 2014
| KIA: | 2011-Onward Optima (TF/QF); 2013-Onward Sorento (XM); 2014-Onward Forte (YD), Cadenza (VG), Sportage (SL); 2015 K900 (KH); |
| GROUP: | Climate |
SERVICE INFORMATION
This bulletin provides information on a new procedure to test A/C compressor function using the GDS. This test applies to certain models equipped with an electronically controlled compressor containing an electronic control valve (ECV) and an automatic a/c control head (FATC) - refer to the table of applicable models below. Use the test procedure outlined in this bulletin as starting point in A/C system diagnosis.
NOTE:
This test procedure is to be used in conjunction with, and not as a substitute, for proper diagnosis.
| Model | Model Year | Engine Displacement |
|---|---|---|
| Forte (YD) | 2014 > | ALL |
| Optima (TF/QF) | 2011 > | ALL |
| Cadenza (VG) | 2014 > | ALL |
| K900 (KH) | 2015 > | ALL |
| Sportage (SL) | 2014 > | ALL |
| Sorento (XM) | 2013 > | ALL |
File Under: Climate
SERVICE PROCEDURE

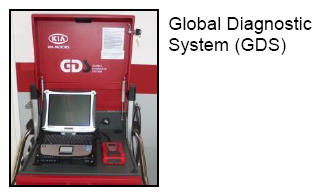

- Connect the power supply cable to the GDS.
- Connect the USB cable between the VCI and the GDS tool.
- Connect the Main 16-pin DLC cable (GHDM - 241000) to the VCI.

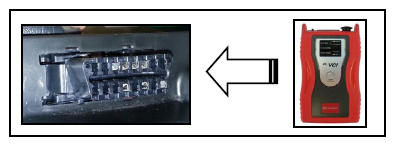

- Connect the Main 16-pin DLC cable (GHDM - 241000) to the OBD-II connector, located under the driver's side of the instrument panel.
- With the ignition key ON, turn ON the VCI and GDS tool. Access the GDS vehicle identification number (VIN) screen and configure the vehicle using the VIN AUTO DETECT Function.

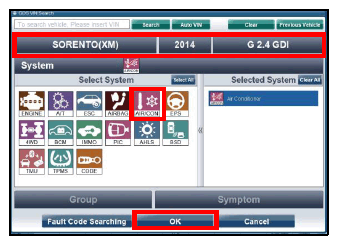

- Select AIR/CON
system and click OK
.

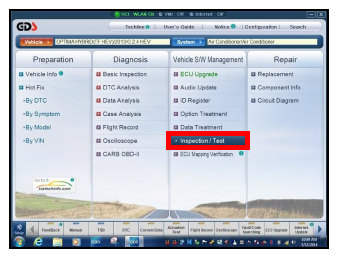

- Select Inspection/Test.

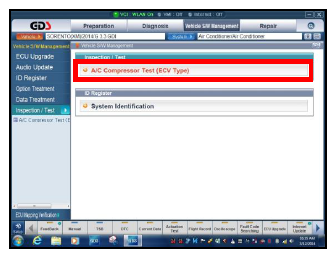

- Select A/C Compressor Test (ECV Type).

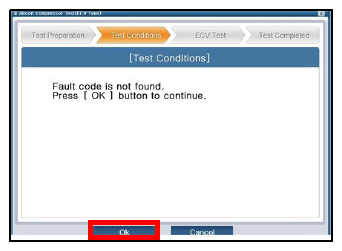

- The system will check for open DTCs. If no DTCs are found, click OK
. If DTCs are found, diagnose per the applicable Service Information on KGIS.

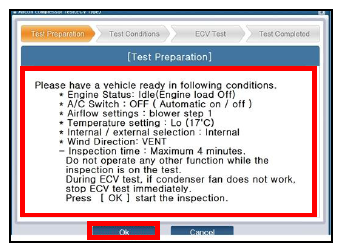

- Make sure all conditions under Test Preparation
are met before performing the test.

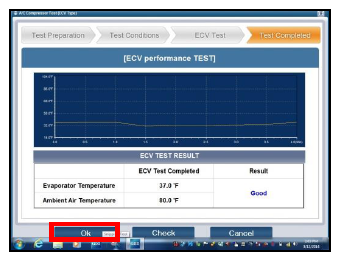

- The GDS will perform the ECV test and will provide either a "Good"
or a "Check"
result. If the result is "Good"
, click on OK
and proceed to step 12. If the result is "Check", proceed to step 13..

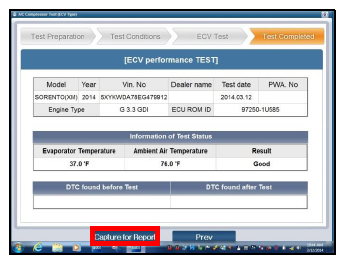

- Select Capture Report
to archive a screenshot with all the vehicle information and the test result for future reference.

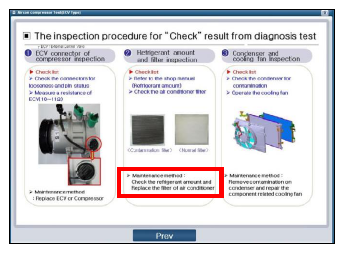

- Perform the component inspection procedures, as shown, and follow the recommendation under "Maintenance Method"
to perform any required repairs.
AFFECTED VEHICLE PRODUCTION RANGE
| Model | Production Range |
|---|---|
| Forte (YD) | 2014 > |
| Optima (TF) | 2011 > |
| Cadenza (VG) | 2014 > |
| K900 (KH) | 2015 > |
| Sportage (SL) | 2014 > |
| Sorento (XM) | 2013 > |
WARRANTY CLAIM INFORMATION
| Claim Type | Causal P/N | Qty | N Code | C Code | Repair Description | Labor Op Code | Time | Related Parts | Qty |
|---|---|---|---|---|---|---|---|---|---|
| W | 97812 2L000 (YD, TF/QF, VG, XM) | 0 | N50 | C32 | (CLI 024) AC-ECV Test | 97701F01 | 0.2 M/H | N/A | 0 |
| 97812 22300 (KH, SL) |
