Installation is the reverse of removal.
CAUTION:
If the oil seal on the transaxle case side is damaged and fluid is leaking, replace the oil seal with a new unit. When installing the new oil seal, use the specialized tool (oil seal installer, 09452-26100).
NOTE:
After replacement or reinstallation procedure of the automatic transaxle assembly, must perform procedures below.
- Power steering fluid replacement and air bleeding. (Refer to STEERING SYSTEM - GENERAL INFORMATION
)
.
- Adding automatic transaxle fluid. (Refer to SERVICE ADJUSTMENT PROCEDURE
)
.
- After servicing the automatic transaxle or TCM, clear the diagnostic trouble codes (DTC) using the GDS tool. Diagnostic trouble codes (DTC) cannot be cleared by disconnecting the battery.
- When deleting diagnostic trouble code, use the GDS as possible.

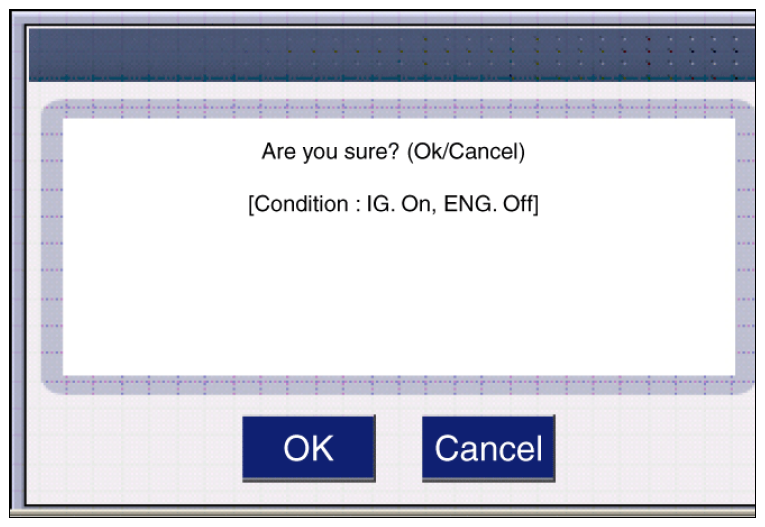

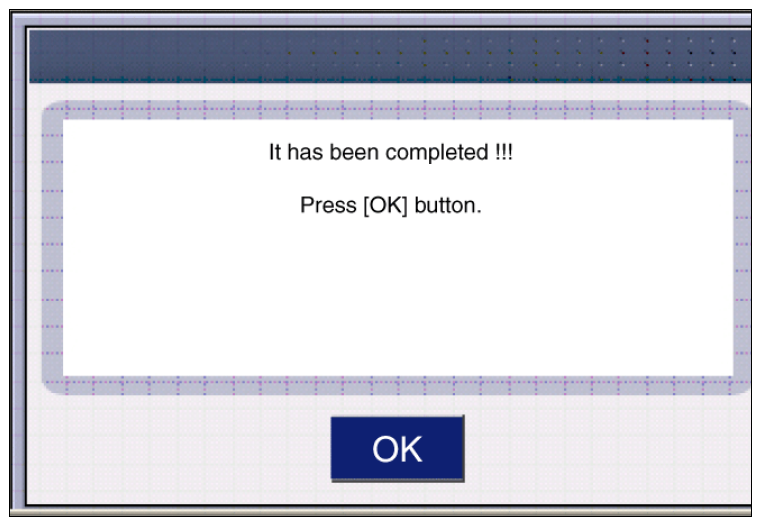

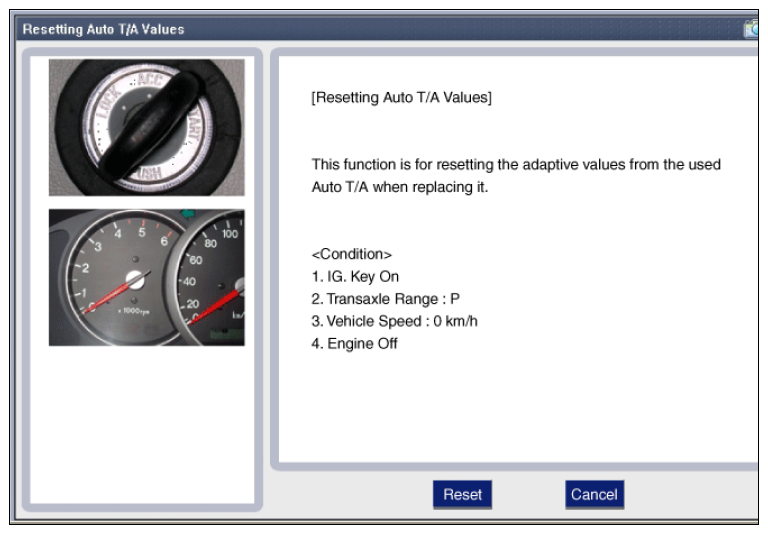

- When replacing the automatic transaxle, reset the automatic transaxle's values by using the GDS.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
- Perform TCM learning after replacing the transaxle to prevent slow transaxle response, jerky acceleration and jerk startup. (Refer to TCM LEARNING
)
.
