Smart Key Code Saving

Connect the DLC cable of GDS to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on GDS.

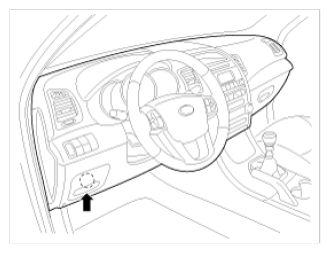

Fig 1: Locating Data Link Connector
Courtesy of KIA MOTORS AMERICA, INC.

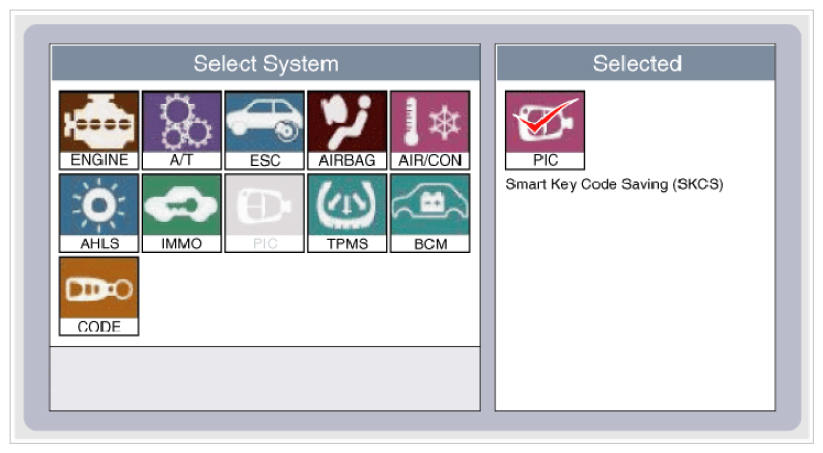

Select the vehicle model and then do "Smart key code saving".

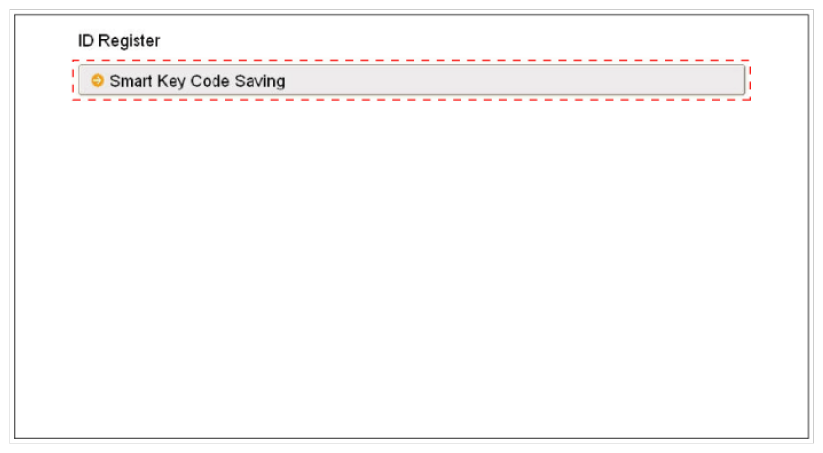

Fig 2: Display Smart Key Code Saving
Courtesy of KIA MOTORS AMERICA, INC.

Fig 3: Selecting Smart Key Code Saving
Courtesy of KIA MOTORS AMERICA, INC.

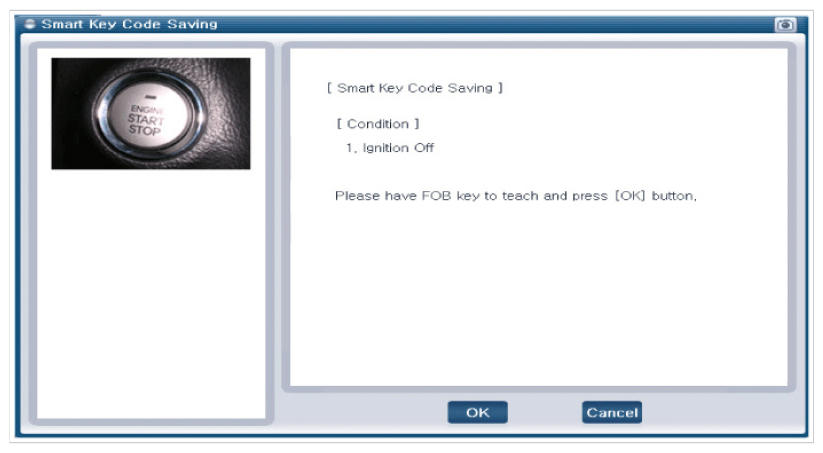

After selecting "Smart key teaching" menu, push "Enter" key, then the screen will be shown as in illustration.

Fig 4: Display Smart Key Teaching Menu
Courtesy of KIA MOTORS AMERICA, INC.
After having the teaching smart key, push "ENTER" key.
Input the "Pin code" for first key teaching.

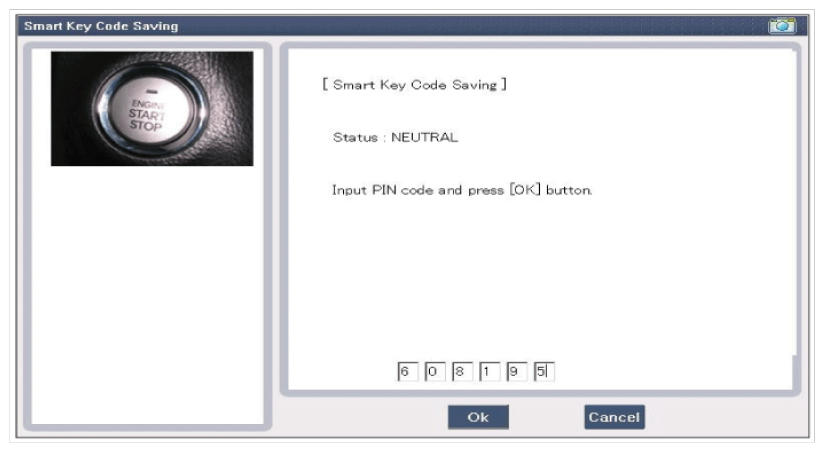

Fig 5: Display Smart Key Pin Code Entering Screen
Courtesy of KIA MOTORS AMERICA, INC.

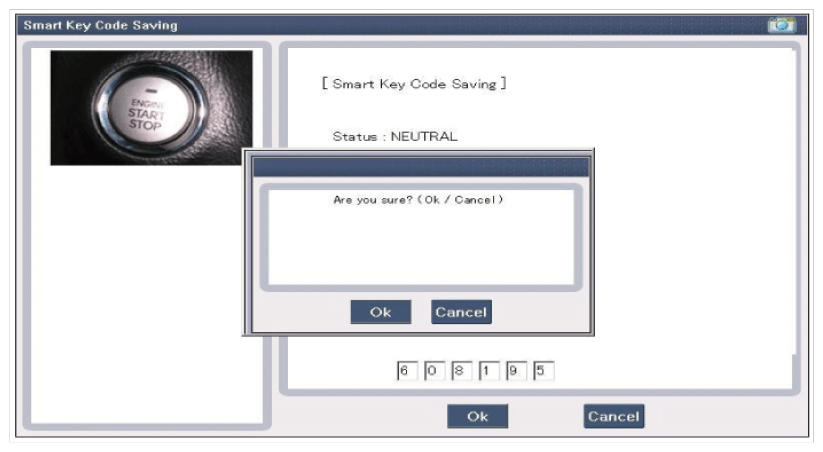

Fig 6: Display Smart Key Confirmation Screen
Courtesy of KIA MOTORS AMERICA, INC.

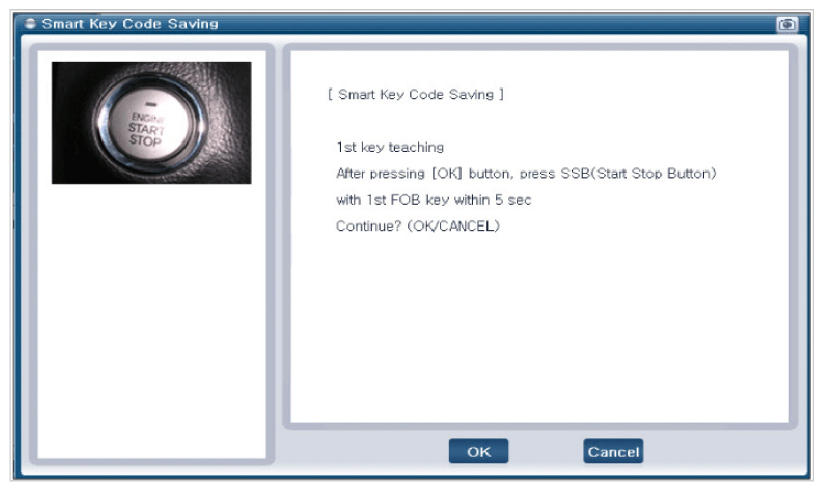

Press the SSB with smart key within 5 sec. after pressing "OK".

Fig 7: Display Screen For 1st Key Teaching
Courtesy of KIA MOTORS AMERICA, INC.
Confirm the message "First key teaching completed".

Fig 8: Display First Key Teaching Completed
Courtesy of KIA MOTORS AMERICA, INC.
Press the SSB with smart key within 5 sec. after pressing "OK".

Fig 9: Display Screen For Second Key Teaching
Courtesy of KIA MOTORS AMERICA, INC.

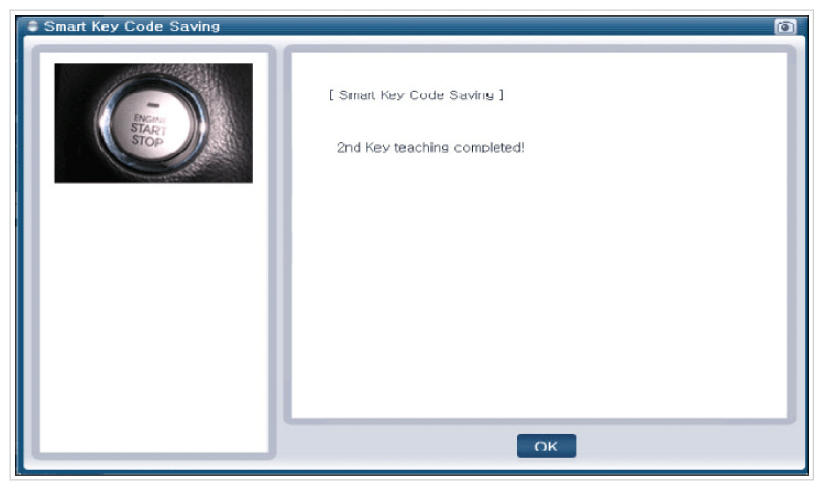

Confirm the message "Second key teaching completed".

Fig 10: Display Second Key Teaching Completed Screen
Courtesy of KIA MOTORS AMERICA, INC.

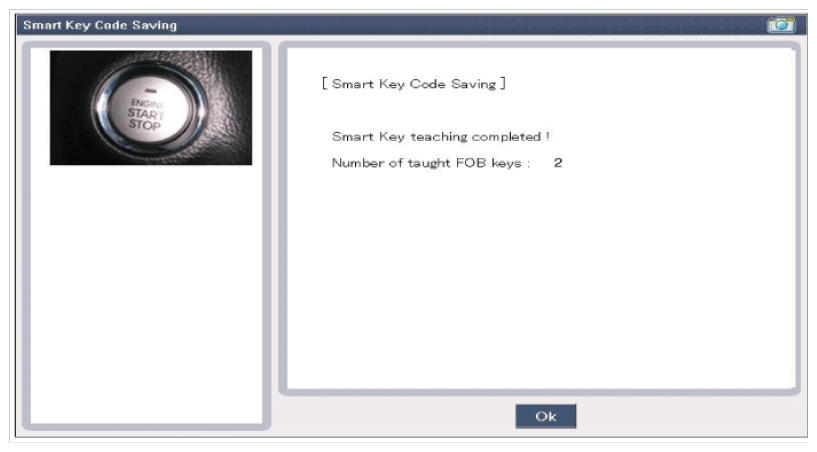

Then the screen will be shown as in illustration when key teaching process is completed.

Fig 11: Display Smart Key Teaching Completed Screen
