Home >> Kia >> 2014 >> Sorento EX, FWD >> Repair and Diagnosis >> Body & Frame >> Windows >> Power Windows >> Power Window Switch >> Components and Components Location >> Components >> Passenger Power Window Switch

Passenger Power Window Switch

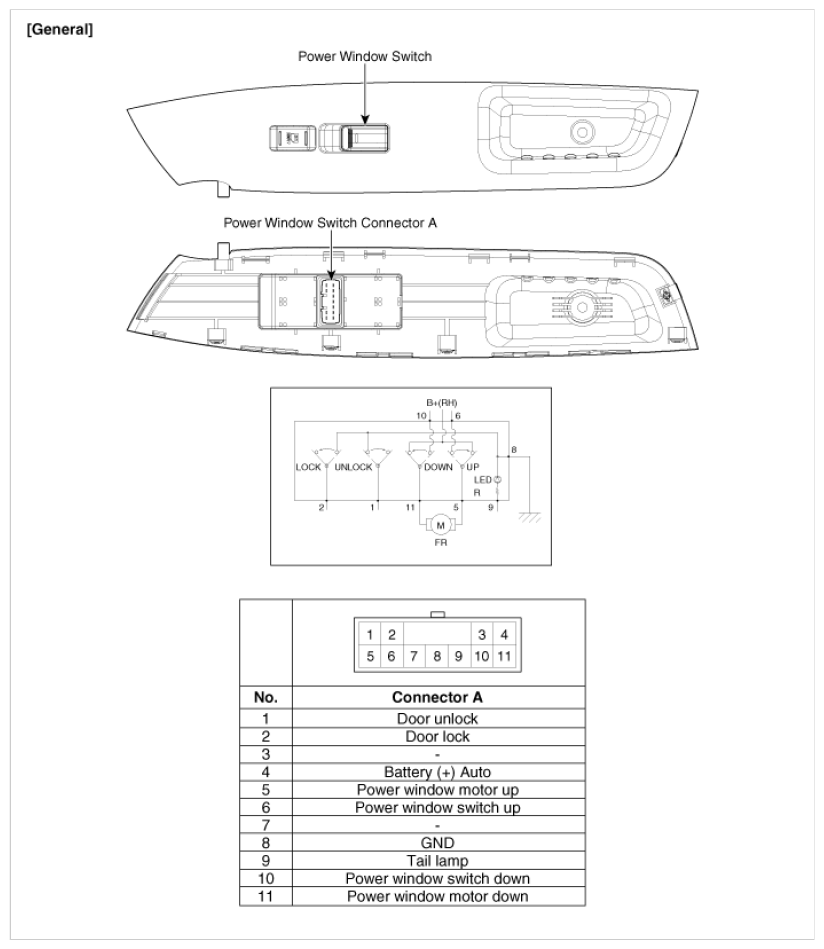

Fig 1: Identifying Power Window Switch And Power Window Switch Connector A (General)
G09767144Courtesy of KIA MOTORS AMERICA, INC.

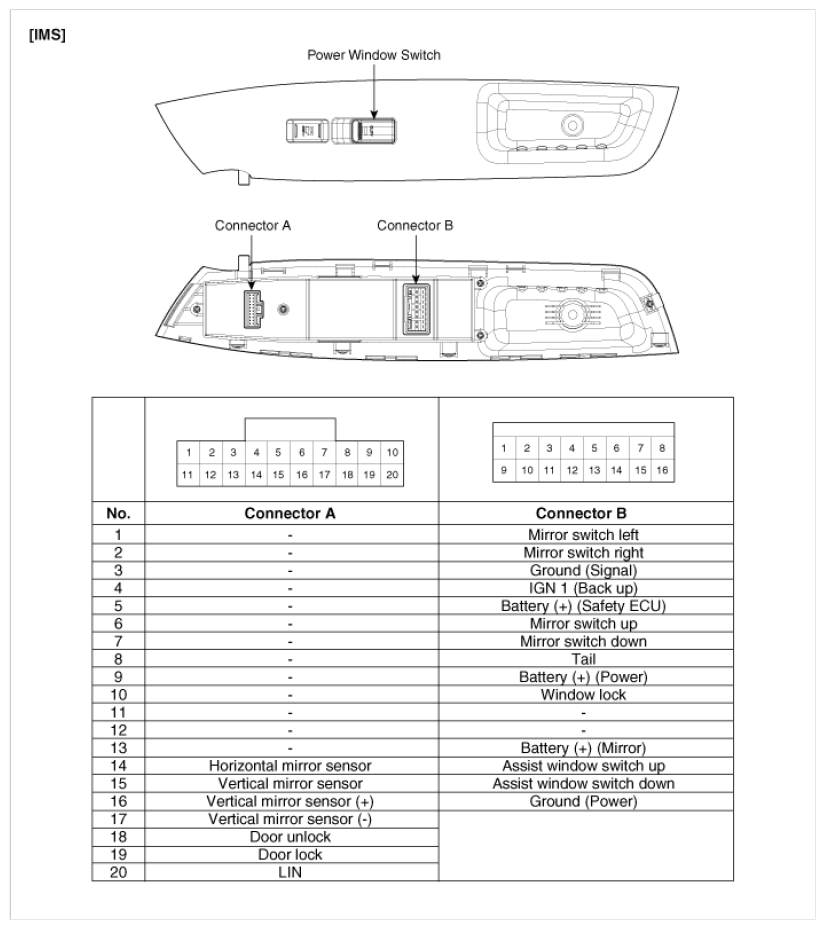

Fig 2: Identifying Power Window Switch, Connector A And Connector B (IMS)
G09767145Courtesy of KIA MOTORS AMERICA, INC.
