Charging System: Alternator

Item		Specification
Rated voltage		13.5V, 120A
Speed in use		1,000 ~ 18,000 RPM
Voltage regulator		IC Regulator built-in type
Regulator Setting Voltage	External mode	Refer to Fig 1
Regulator Setting Voltage	Internal mode	14.55 ± 0.3V
Temperature Gradient	External mode	0 ± 3 mV/°C
Temperature Gradient	Internal mode	-3.5 ± 2mV/°C

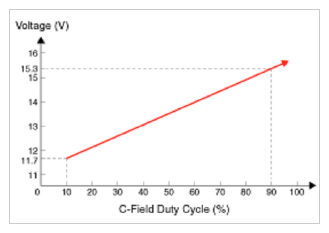

Fig 1: Identifying Alternator Voltage And Duty Cycle

G09779063

Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: Identifying Alternator Output Current & Alternator Speed

G09779064

Courtesy of KIA MOTORS AMERICA, INC.
