Home >> Kia >> 2014 >> Soul Base, Automatic Trans >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Smart Key System >> Smart Key Unit >> Repair procedures >> Removal >> Buzzer

Repair procedures: Removal: Buzzer

  1. Disconnect the negative(-) battery terminal.
  2. Remove the front left wheel guard.
  3. Remove the buzzer (B) after disconnecting the connector (A).

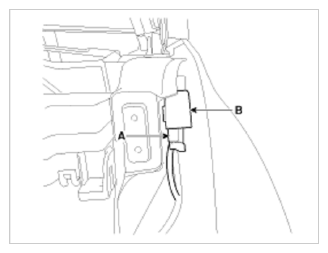

    Fig 1: Identifying Buzzer And Connector
    G09778504Courtesy of KIA MOTORS AMERICA, INC.
