Components and Components Location

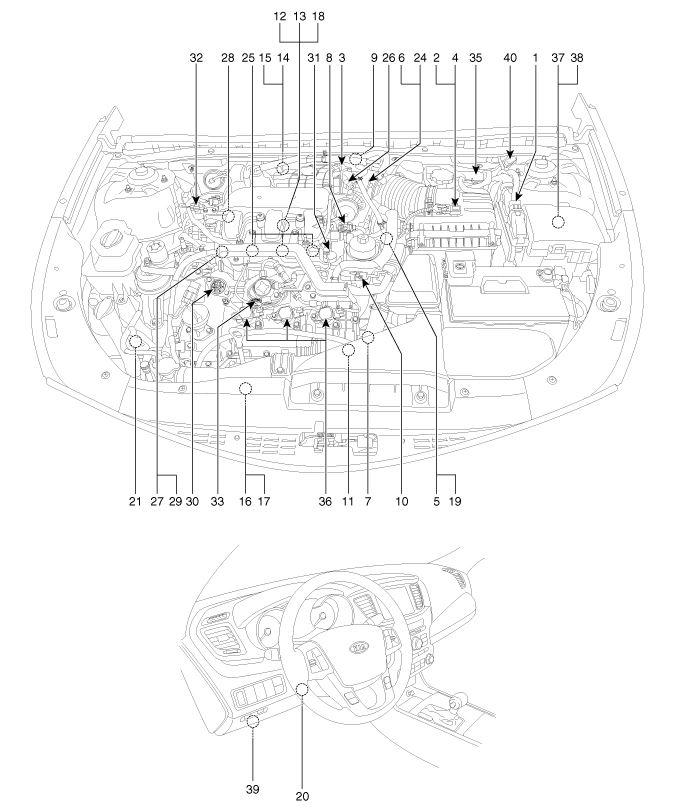

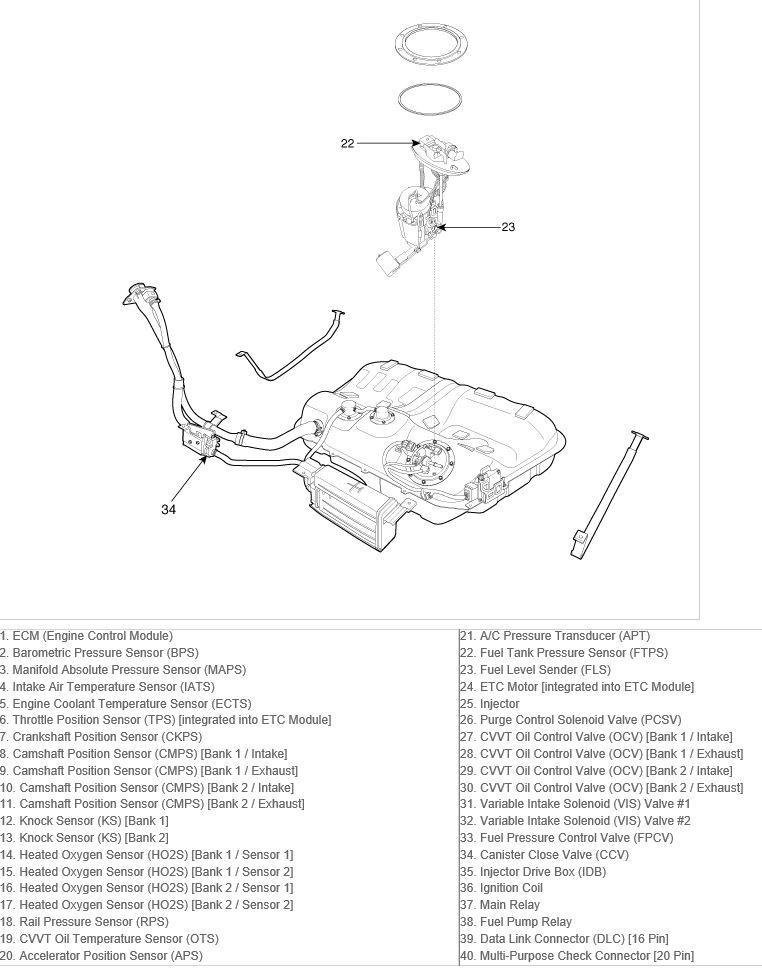

Fig 1: ECM Components Location (1 Of 7)

Courtesy of KIA MOTORS AMERICA, INC.

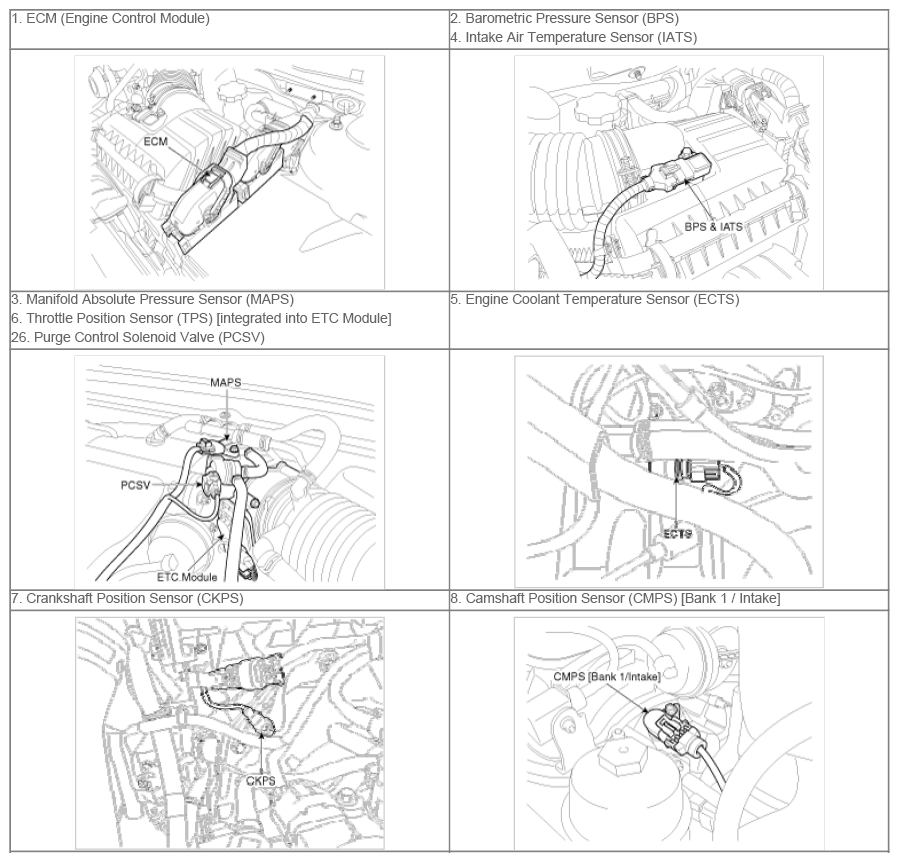

Fig 2: ECM Components Location (2 Of 7)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 3: ECM Components Location (3 Of 7)

Courtesy of KIA MOTORS AMERICA, INC.

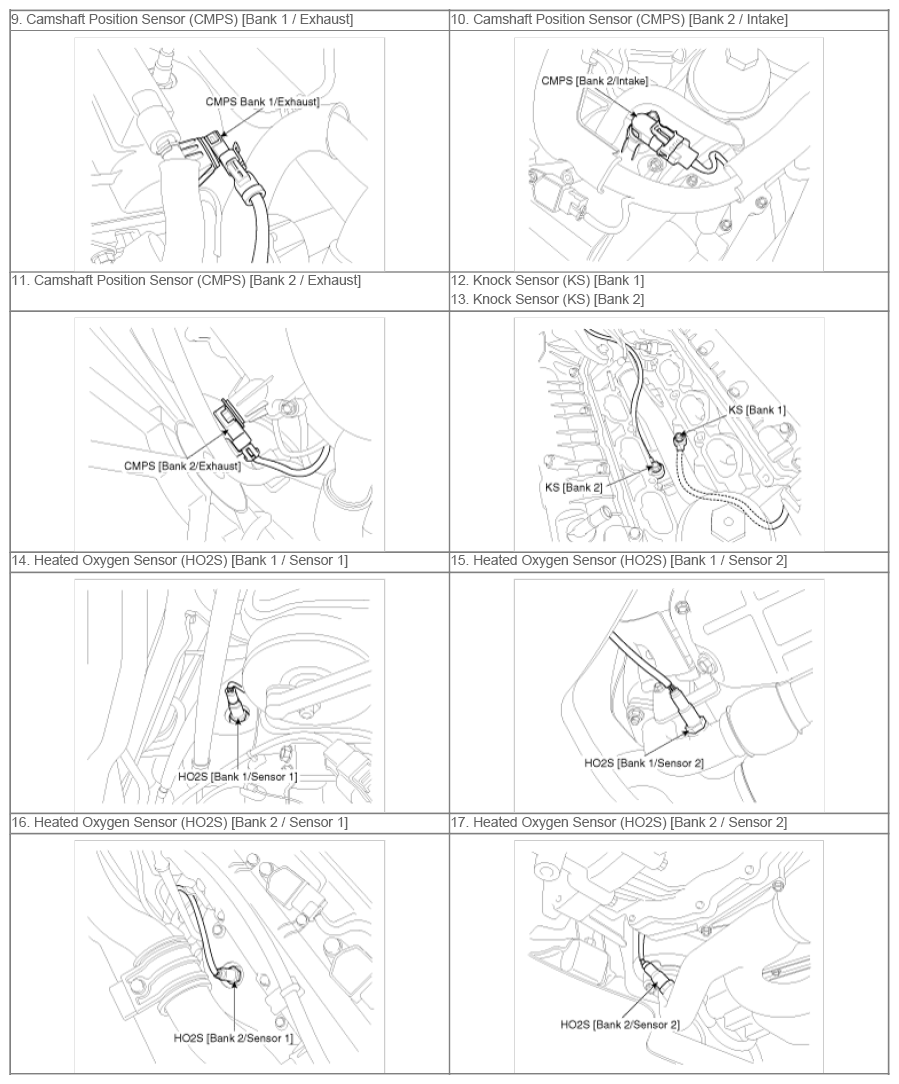

Fig 4: ECM Components Location (4 Of 7)

Courtesy of KIA MOTORS AMERICA, INC.

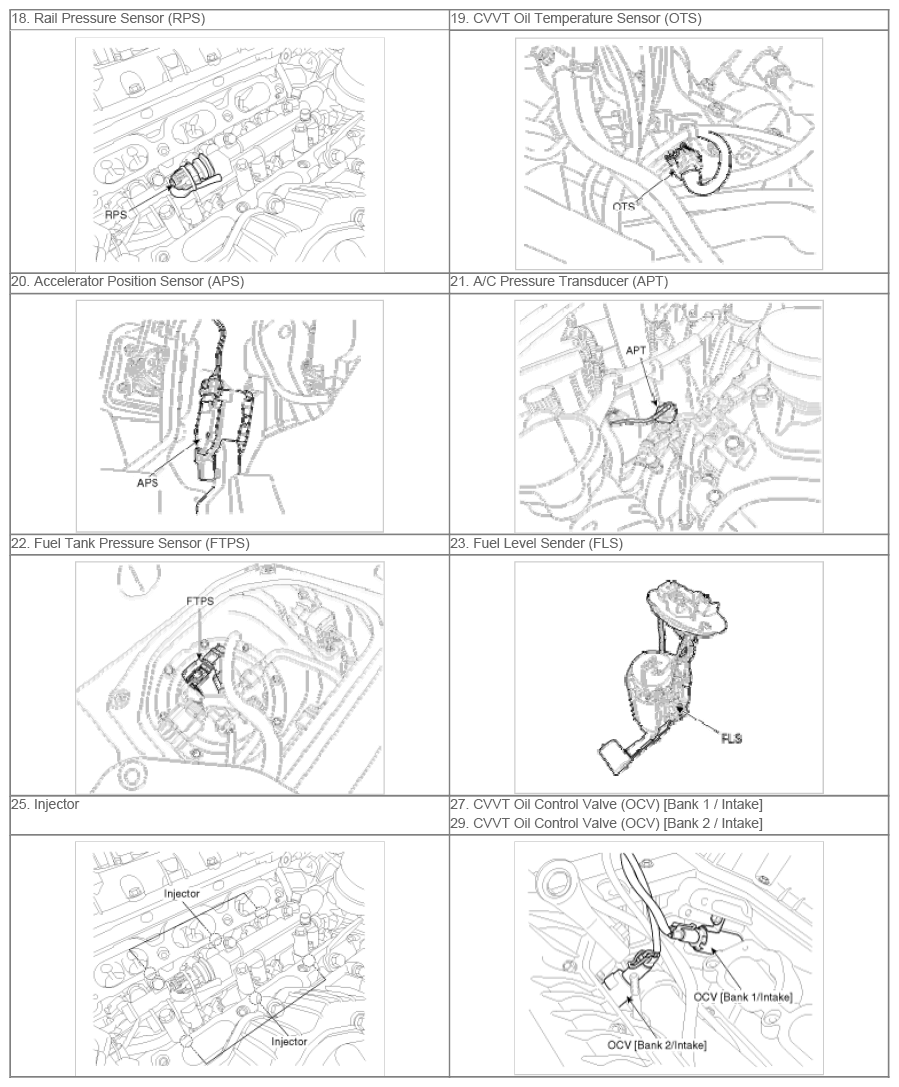

Fig 5: ECM Components Location (5 Of 7)

Courtesy of KIA MOTORS AMERICA, INC.

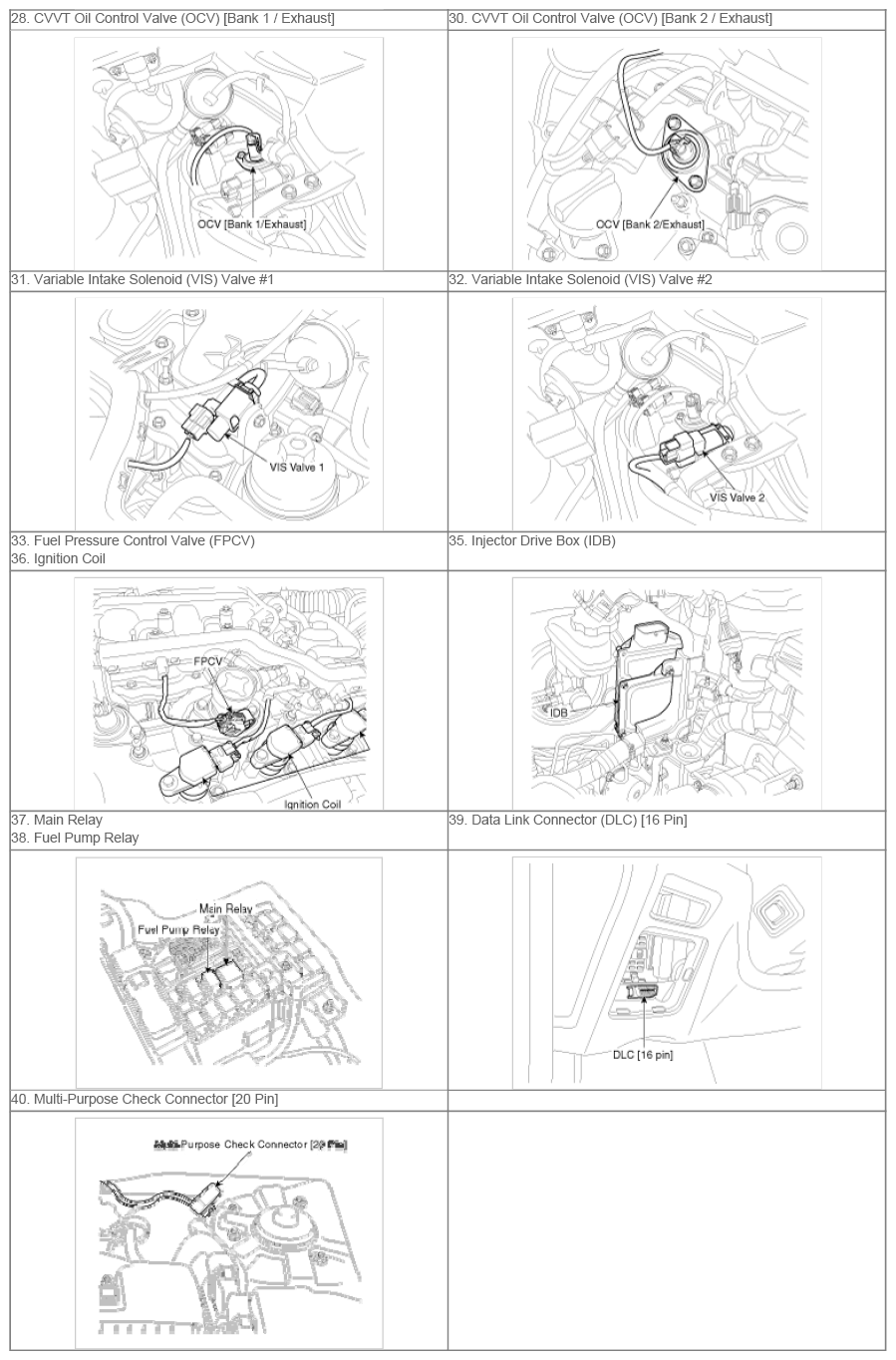

Fig 6: ECM Components Location (6 Of 7)

Courtesy of KIA MOTORS AMERICA, INC.
