Home >> Kia >> 2015 >> Cadenza Limited >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System >> Engine Control Module (ECM) >> Schematic Diagrams >> Circuit Diagram

Circuit Diagram

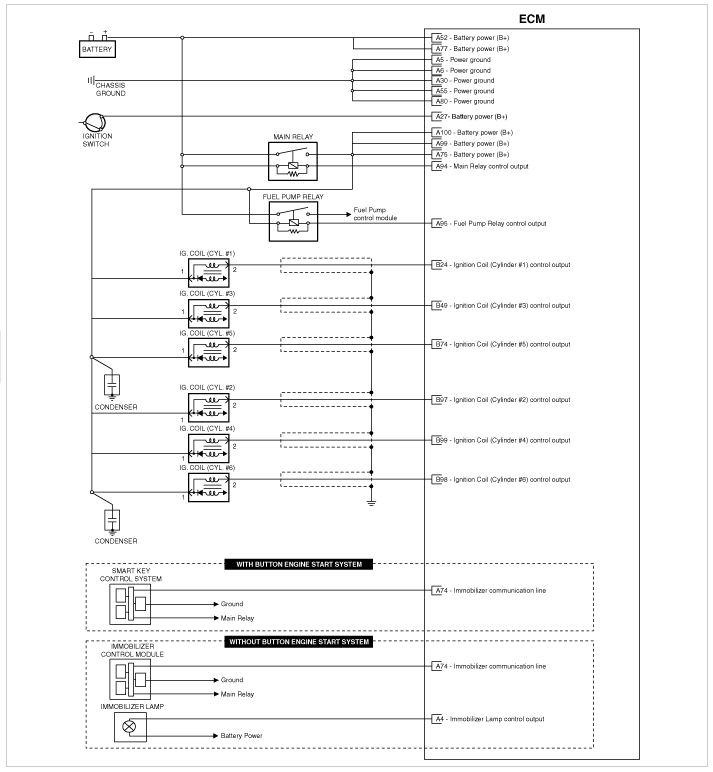

Fig 1: ECM - Circuit Diagram (1 Of 5)
G09751235Courtesy of KIA MOTORS AMERICA, INC.

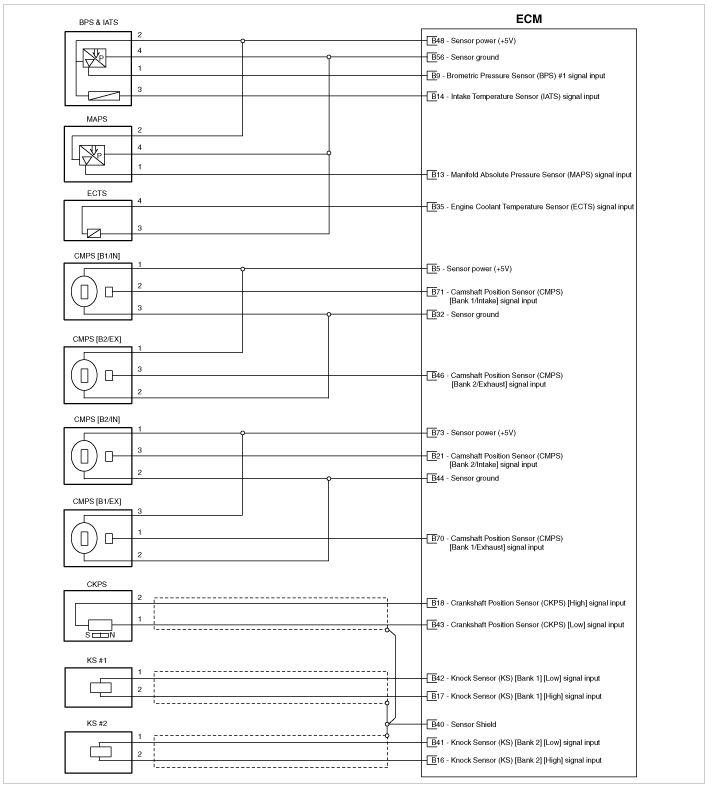

Fig 2: ECM - Circuit Diagram (2 Of 5)
G09751236Courtesy of KIA MOTORS AMERICA, INC.

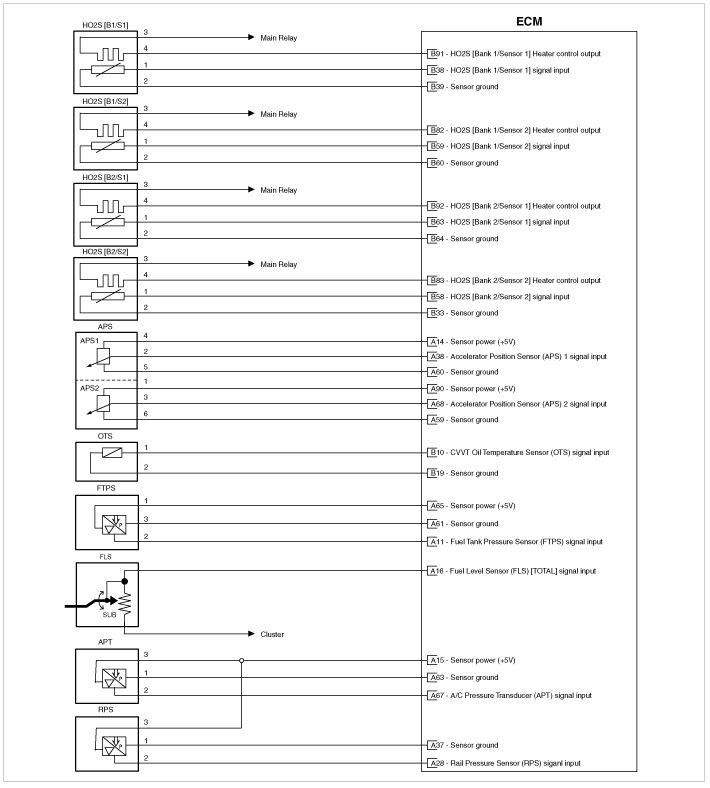

Fig 3: ECM - Circuit Diagram (3 Of 5)
G09751237Courtesy of KIA MOTORS AMERICA, INC.

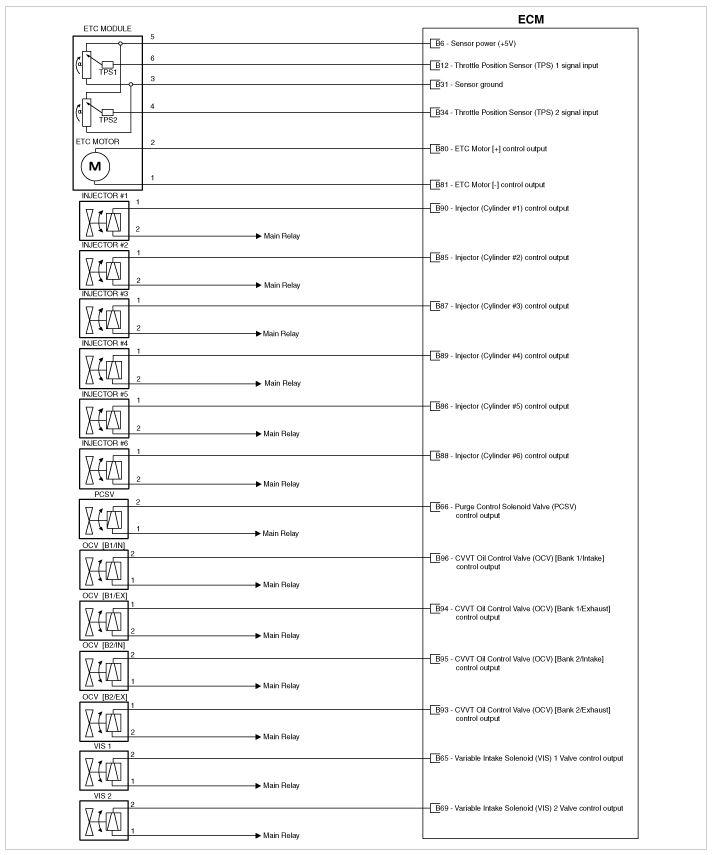

Fig 4: ECM - Circuit Diagram (4 Of 5)
G09751238Courtesy of KIA MOTORS AMERICA, INC.

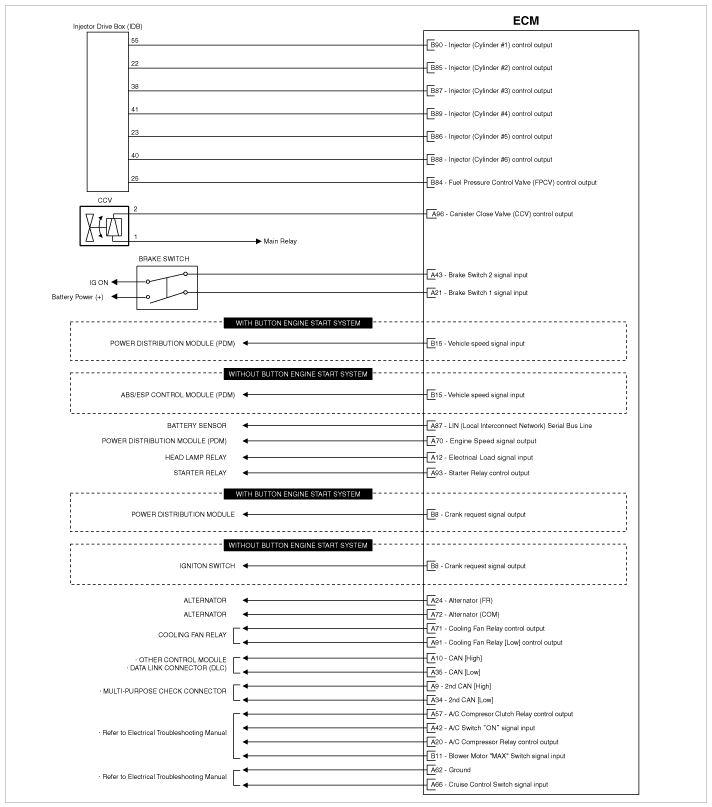

Fig 5: ECM - Circuit Diagram (5 Of 5)
G09751239Courtesy of KIA MOTORS AMERICA, INC.
