FOB Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IGN ON, select the "FOB KEY STATUS INFO".

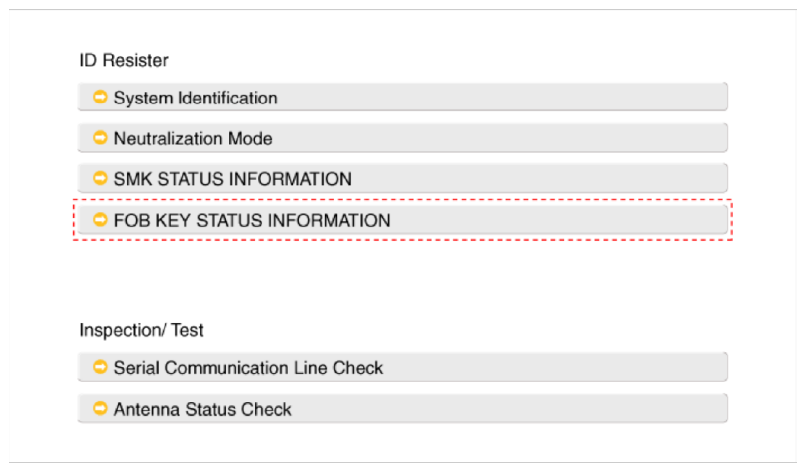

    Fig 1: Display - Fob Key Status Information Selection Screen
    G09744852Courtesy of KIA MOTORS AMERICA, INC.

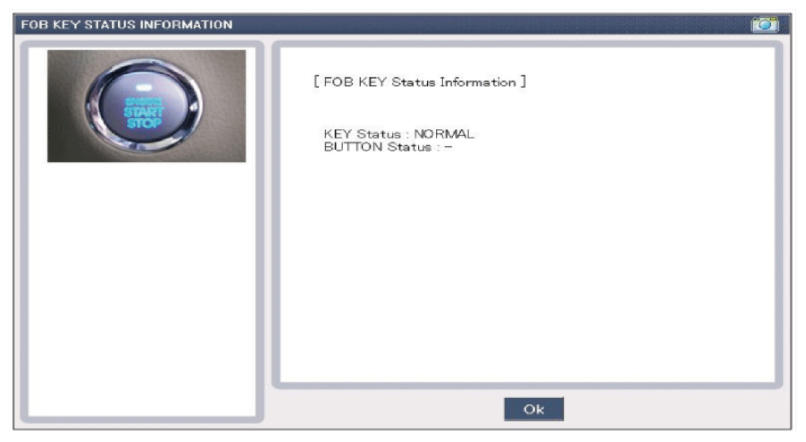

Fig 2: Display - Fob Key Status Information Screen
G09744853Courtesy of KIA MOTORS AMERICA, INC.
