Trunk Lid Open Switch

  1. Check for continuity between the trunk lid open switch terminal.

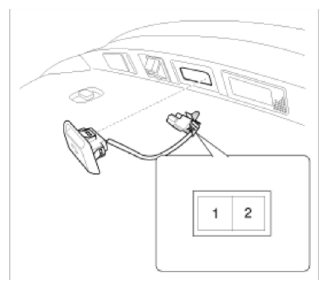

    Fig 1: Trunk Lid Open Switch Connector End View
    G09744822Courtesy of KIA MOTORS AMERICA, INC.
  2. If continuity is not specified, inspect the switch.

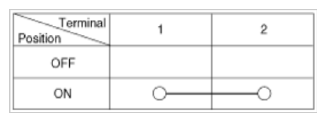

    Fig 2: Trunk Lid Open Switch Continuity Reference Chart
    G09744823Courtesy of KIA MOTORS AMERICA, INC.
