Trunk Antenna

  1. Disconnect the negative (-) battery terminal.
  2. Using a clip remover, detach the clips, and remove the rear transverse trim (A).

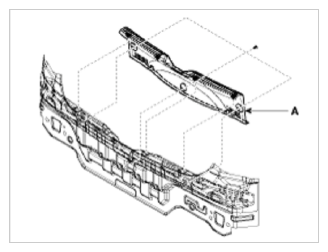

    Fig 1: Rear Transverse Trim
    G09744829Courtesy of KIA MOTORS AMERICA, INC.
  3. Disconnect the connector, then remove the trunk antenna (A) with loosening 2 nuts.
    Fig 2: Trunk Antenna And Nuts
    G09744830Courtesy of KIA MOTORS AMERICA, INC.
