Starting System: Troubleshooting

NOTE:

The battery must be in good condition and fully charged for this troubleshooting.

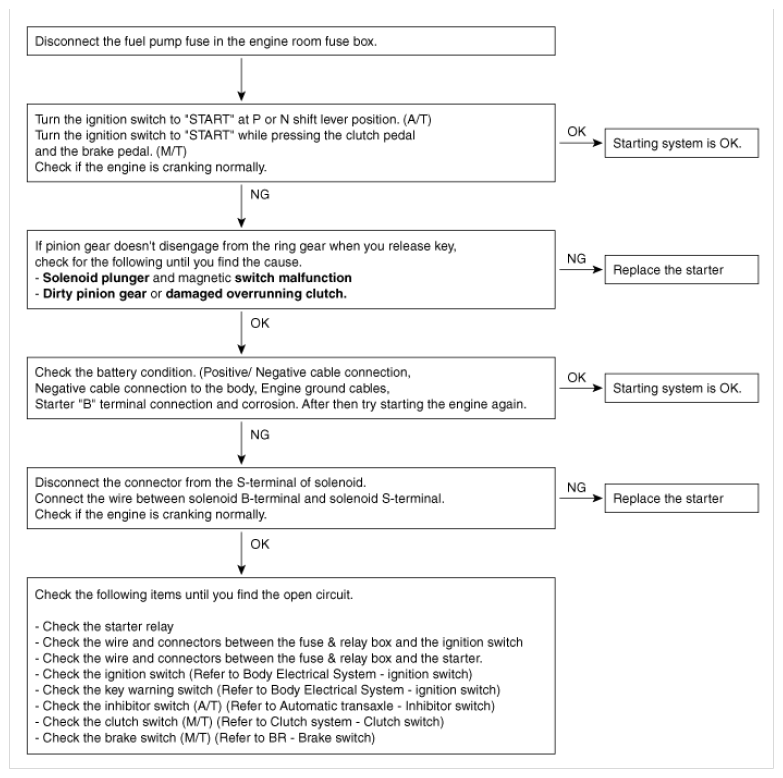

Fig 1: Troubleshooting Workflow Chart

G09742825

Courtesy of KIA MOTORS AMERICA, INC.
