Toe Adjustment
- Loosen the tie rod end lock nut.
- Remove the bellows clip to prevent the bellows from being twisted.

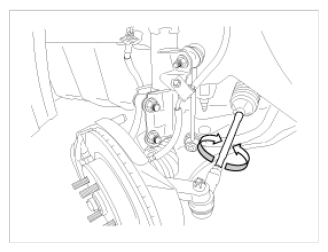

- Adjust the toe by screwing or unscrewing the tie rod. Toe adjustment should be made by turning the right and left tie rods by the same amount.
Toe-In
Total: 0.1° ± 0.2°
Individual: 0.05° ± 0.1°
- When completing the toe adjustment, install the bellows clip and tighten the tie rod end lock nut to specified torque.
Tightening Torque:
49.0 ~ 53.9 N.m (5.0 ~ 5.5 kgf.m, 36.2 ~ 39.8 lb-ft)
