Components Location

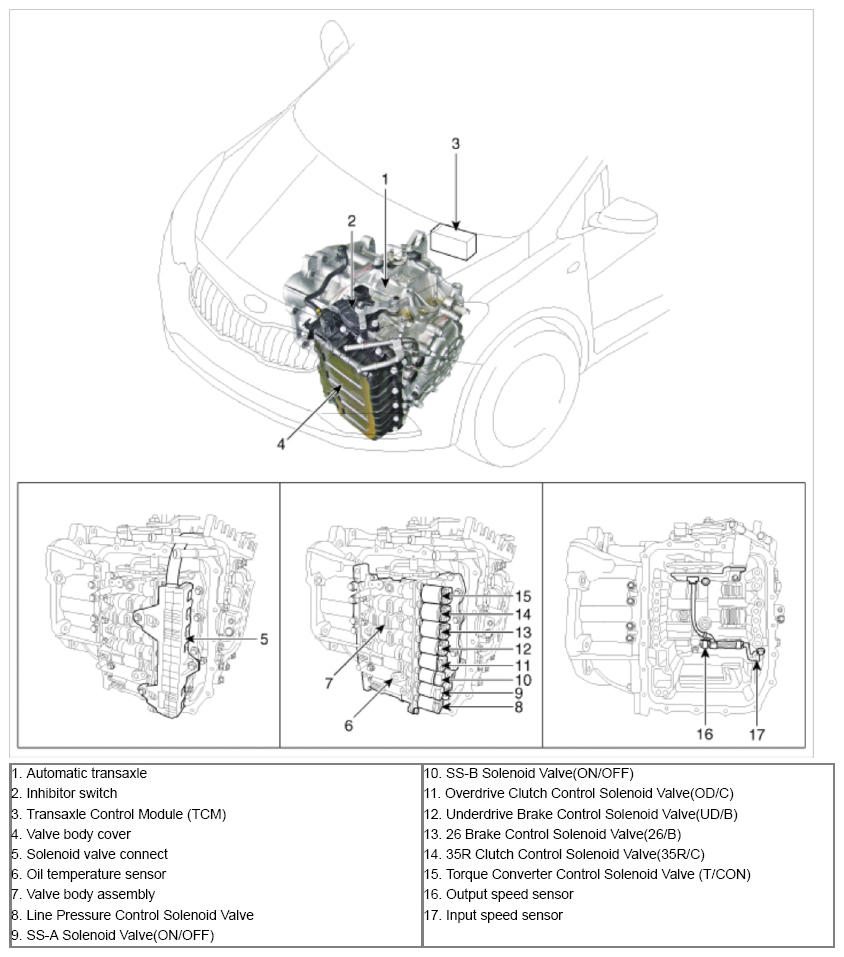

Fig 1: Automatic Transaxle Control System Components (1 Of 2)
G09748841Courtesy of KIA MOTORS AMERICA, INC.
Fig 2: Automatic Transaxle Control System Components (2 Of 2)
G09748842Courtesy of KIA MOTORS AMERICA, INC.
