Repair Procedures: Installation

  1. Install in the reverse order of removal.
    NOTE: After replacement or reinstallation procedure of the valve body assembly, must perform procedures below.
    • Adding Automatic Transaxle Fluid (ATF).

      (Refer to "FLUID ")

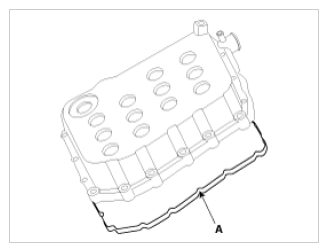

    • Replace the gasket (A) before reinstalling the valve body cover.
    Fig 1: Valve Body Cover Gasket
    G09748877Courtesy of KIA MOTORS AMERICA, INC.
