Home >> Kia >> 2015 >> Forte LX, Automatic Trans >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle Control System - 1.8L >> Shift Cable >> Components And Components Location >> Components

Components And Components Location: Components

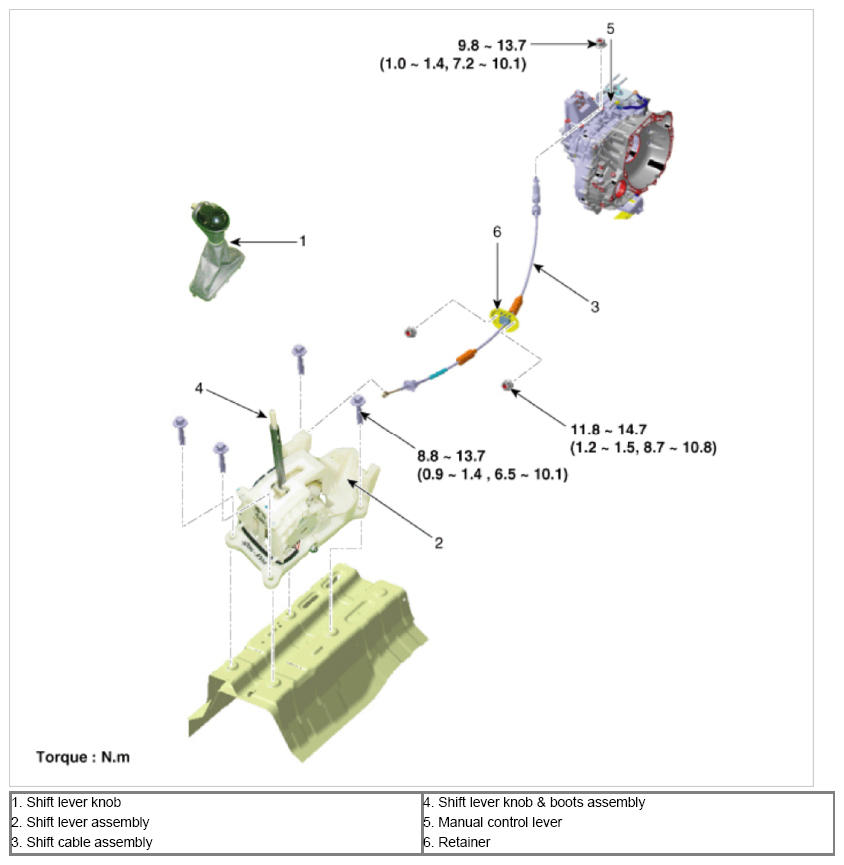

Fig 1: Shift Cable Components With Torque Specifications
G09748927Courtesy of KIA MOTORS AMERICA, INC.
