Home >> Kia >> 2015 >> Forte5 SX, Automatic Trans >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 1.6L >> RCV Control Solenoid Valve >> Repair Procedures >> Removal

Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Remove the air duct (A).

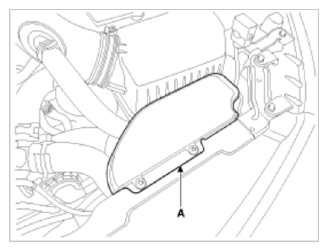

    Fig 1: Air Duct
    G09750262Courtesy of KIA MOTORS AMERICA, INC.
  3. Disconnect the RCV control solenoid valve connector (A) and vapor hoses (B).
  4. Remove the RCV control solenoid valve (D) by loosening the mounting bolts (C).

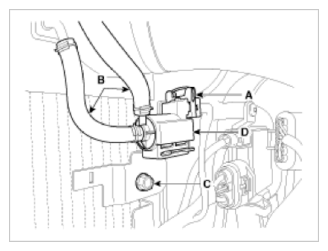

    Fig 2: RCV Control Solenoid Valve Connector, Vapor Hoses & Mounting Bolts
    G09750263Courtesy of KIA MOTORS AMERICA, INC.
