Neutralization Status Check

Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
After IGN ON, select the "Neutralization mode".

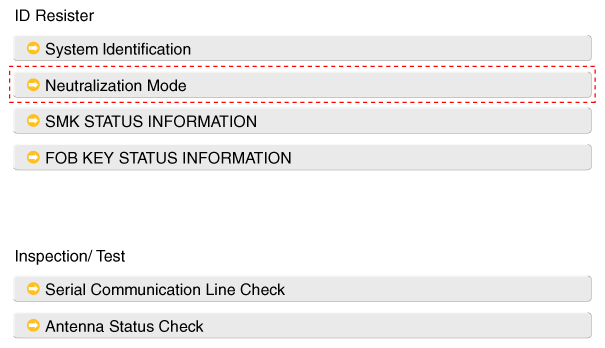

Fig 1: Screen Display - Vehicle S/W Management (Neutralization Mode)
Courtesy of KIA MOTORS AMERICA, INC.

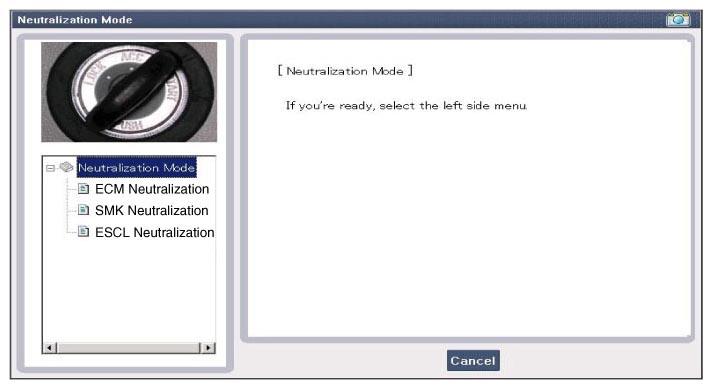

Fig 2: Screen Display - Neutralization Mode
Courtesy of KIA MOTORS AMERICA, INC.

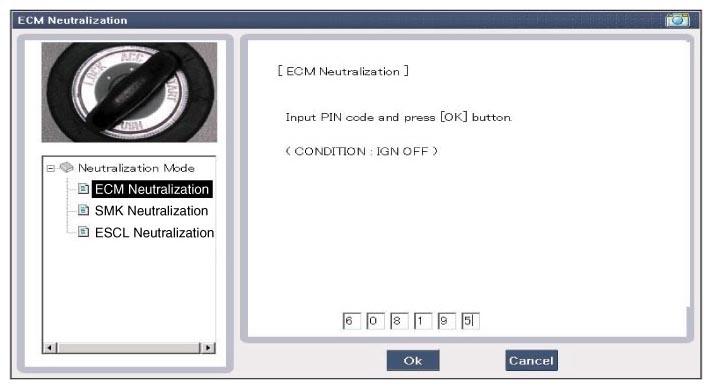

Fig 3: Screen Display - ECM Neutralization
Courtesy of KIA MOTORS AMERICA, INC.

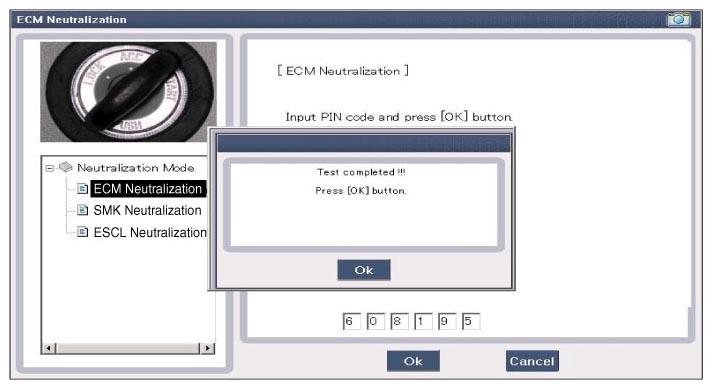

Fig 4: Screen Display - ECM Neutralization (Test Completed)
Courtesy of KIA MOTORS AMERICA, INC.

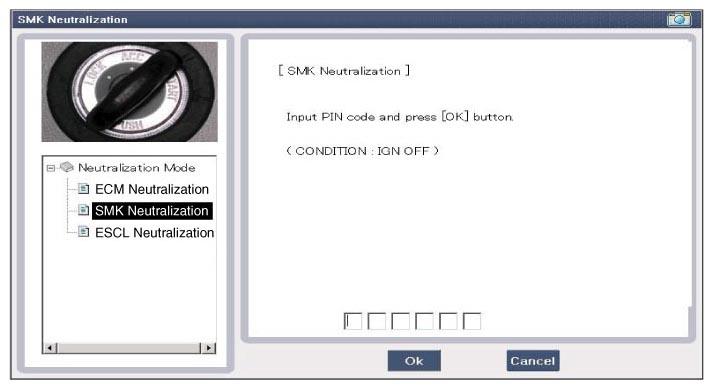

Fig 5: Screen Display - SMK Neutralization
Courtesy of KIA MOTORS AMERICA, INC.

Fig 6: Screen Display - SMK Neutralization (Pin Code)
Courtesy of KIA MOTORS AMERICA, INC.

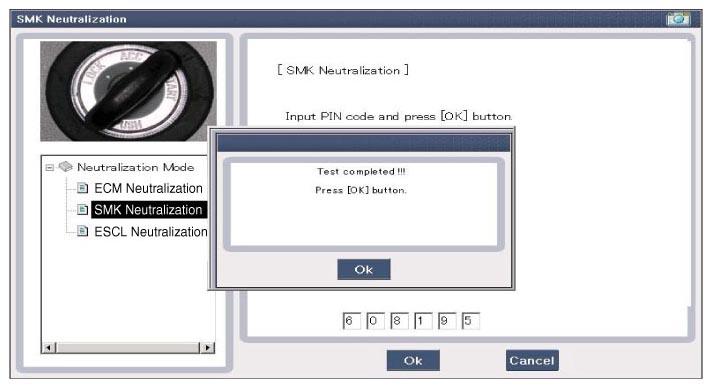

Fig 7: Screen Display - SMK Neutralization (Test Completed)
Courtesy of KIA MOTORS AMERICA, INC.
