Trunk Open Switch

  1. Check for continuity between the trunk open switch terminals.

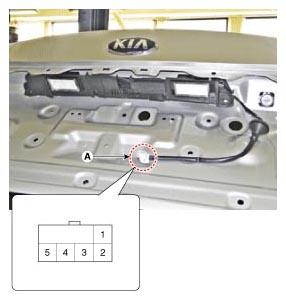

    Fig 1: Identifying Trunk Open Switch Connector Terminals
    G10716128Courtesy of KIA MOTORS AMERICA, INC.
  2. If continuity is not specified, inspect the switch
Fig 2: Trunk Open Switch Terminal Continuity Chart
G10716129Courtesy of KIA MOTORS AMERICA, INC.
Fig 3: Trunk Open Switch Terminals Chart
G10716130Courtesy of KIA MOTORS AMERICA, INC.
