Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the rear seat (Refer to REAR SEAT .
  3. Remove the fuel pump service cover (A).

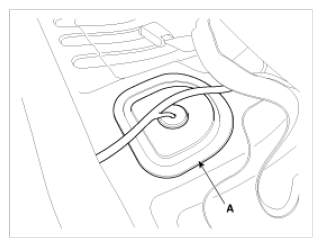

    Fig 1: Identifying Fuel Pump Service Cover
    G08321437Courtesy of KIA MOTORS AMERICA, INC.
  4. Disconnect the fuel tank pressure sensor connector.
  5. Remove the fuel tank pressure sensor (A) after releasing the hooks vertically.

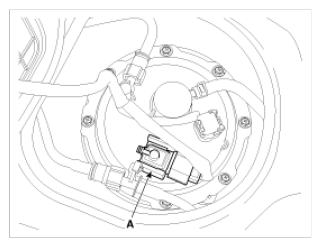

Fig 2: Identifying Fuel Tank Pressure Sensor
G08321438Courtesy of KIA MOTORS AMERICA, INC.
