Repair Procedures: Removal

1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
2. Disconnect the connector (A), and then remove the sensor (B).
   NOTE: Note that the SST (Part No.: 09392-2H100) is useful when removing the heated oxygen sensor.

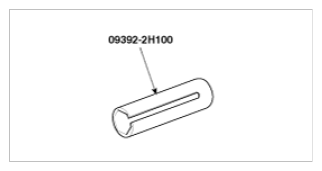

Fig 1: Identifying Heated Oxygen Sensor Remover Tool (09392-2H100)

Courtesy of KIA MOTORS AMERICA, INC.

[Bank 1/Sensor 1]

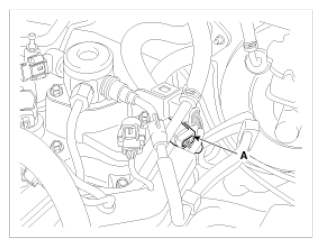

Fig 2: Identifying Heated Oxygen Sensor Connector (Bank 1/Sensor 1)

Courtesy of KIA MOTORS AMERICA, INC.

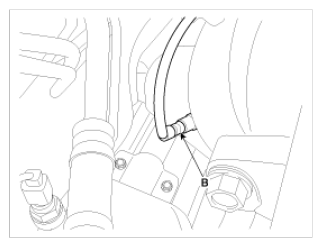

Fig 3: Identifying Heated Oxygen Sensor (Bank 1/Sensor 1)

Courtesy of KIA MOTORS AMERICA, INC.

[Bank 1/Sensor 2]

Fig 4: Identifying Heated Oxygen Sensor Connector (Bank 1/Sensor 2)

Courtesy of KIA MOTORS AMERICA, INC.

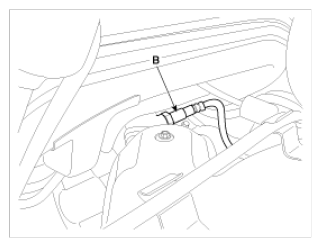

Fig 5: Identifying Heated Oxygen Sensor (Bank 1/Sensor 2)

Courtesy of KIA MOTORS AMERICA, INC.
