Rear Power Window Switch

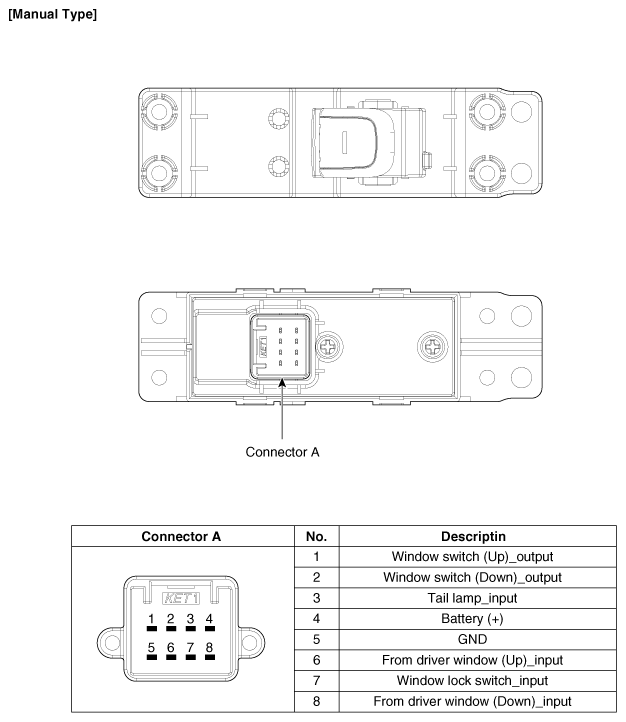

Fig 1: Rear Power Window Switch Connector Terminals - Manual Type
G10651500Courtesy of KIA MOTORS AMERICA, INC.

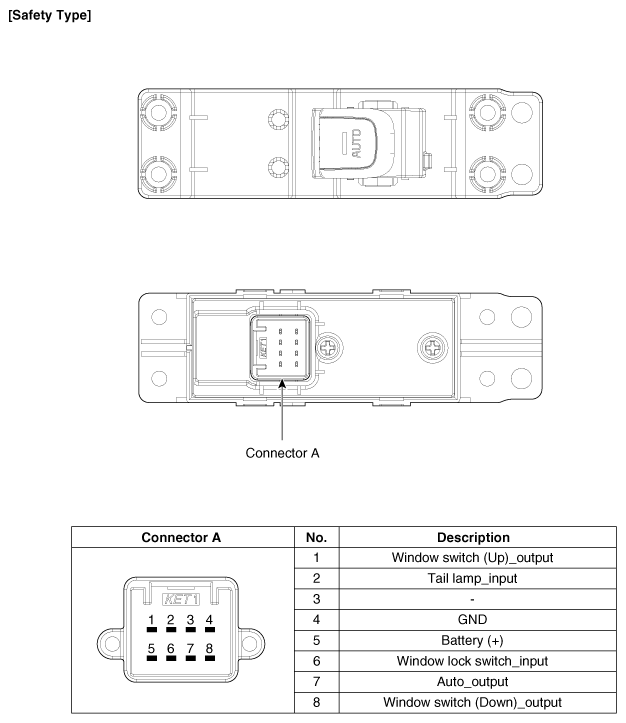

Fig 2: Rear Power Window Switch Connector Terminals - Safety Type
G10651501Courtesy of KIA MOTORS AMERICA, INC.
