Components And Components Location: Components

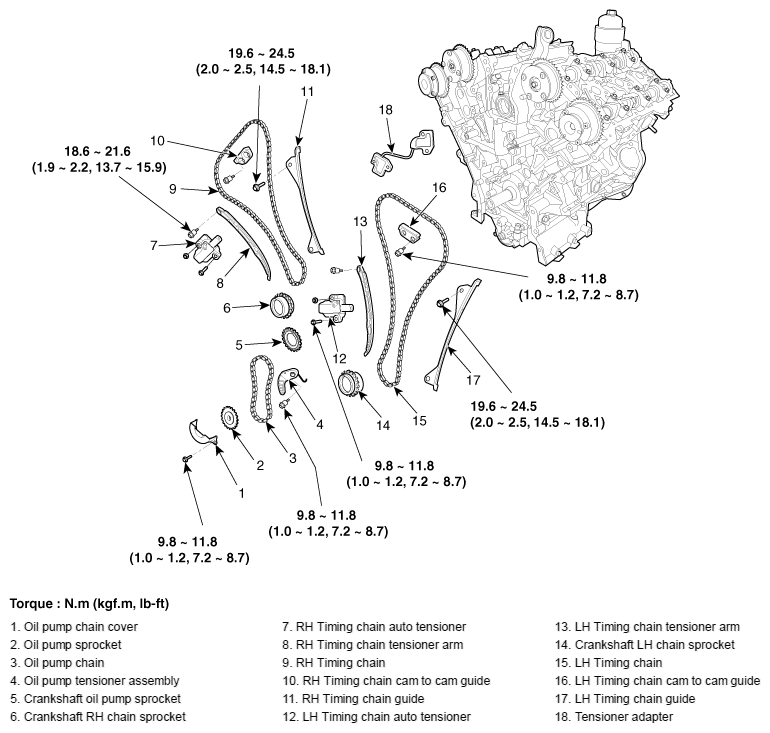

Fig 1: Timing Chain Related Components With Torque Specification

G10648563

Courtesy of KIA MOTORS AMERICA, INC.
