Wave Form

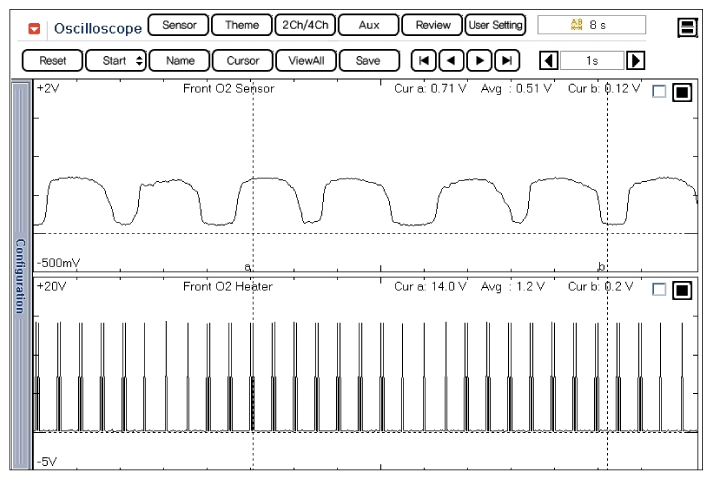

Fig 1: Display - Front Oxygen Sensor Troubleshooting Waveform
G10648887Courtesy of KIA MOTORS AMERICA, INC.

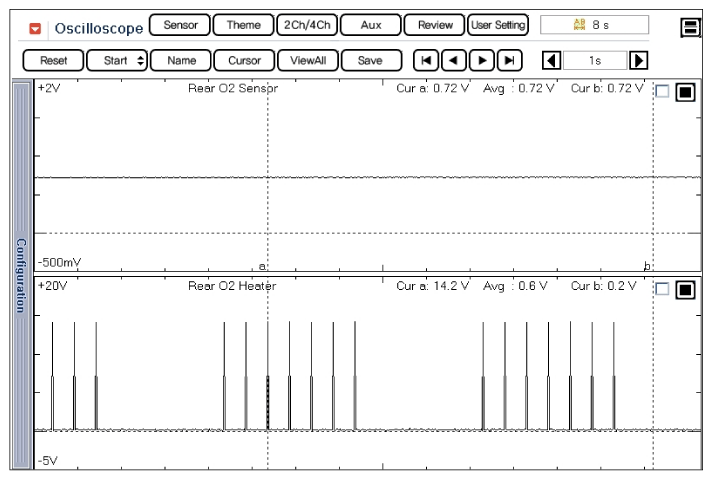

Fig 2: Display - Rear Oxygen Heater Troubleshooting Waveform
G10648888Courtesy of KIA MOTORS AMERICA, INC.
