Component Location

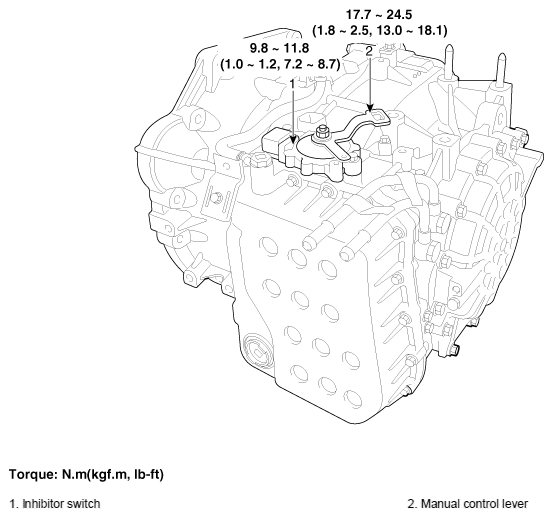

Fig 1: Inhibitor Switch And Manual Control Lever With Torque Specifications
G10649111Courtesy of KIA MOTORS AMERICA, INC.
