Home >> Kia >> 2015 >> Sedona EX >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Hydraulic System >> Valve Body >> Components And Components Location >> Components

Components And Components Location: Components

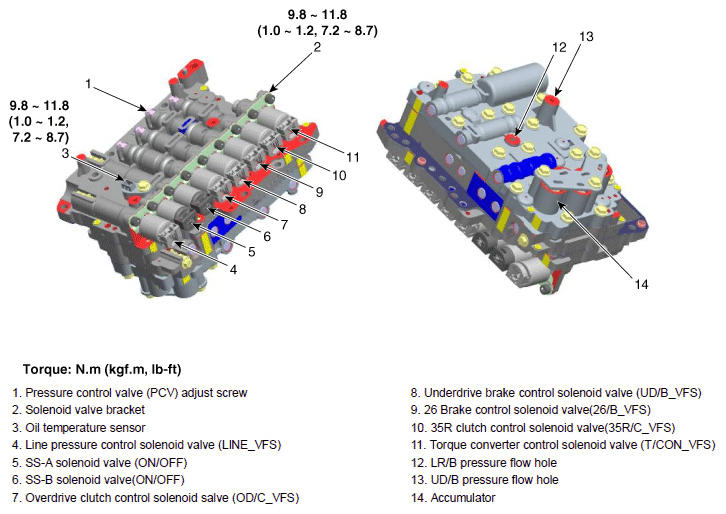

Fig 1: Valve Body Components With Torque Specifications

G10649170

Courtesy of KIA MOTORS AMERICA, INC.
