Repair Procedures: Installation

  1. Install in the reverse order of removal.
    NOTE:
    1. Be careful not to damage the O-ring (A). If the O-ring is damaged, replace with a new one.
    2. Smear and cover splines (B) with molybdenum type high pressure grease.

      TECH LUBE MEGAMAX - ALPHA or equivalent

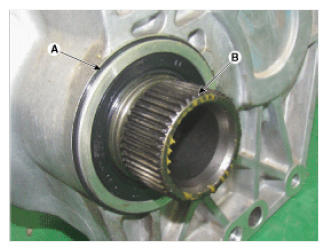

      Fig 1: O-Ring And Cover Splines
      G09765670Courtesy of KIA MOTORS AMERICA, INC.
    3. Install the propeller shaft to be near runout marking (Transfer assembly 1 ea, propeller shaft 1ea) each other.

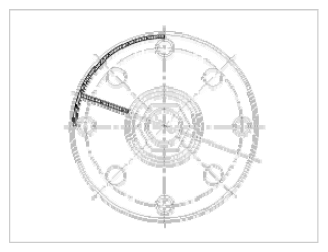

    Fig 2: Propeller Shaft Runout Marking
    G09765671Courtesy of KIA MOTORS AMERICA, INC.
