Tailgate Switch

  1. Check for continuity between the tailgate latch terminals.
    Fig 1: Tailgate Latch Terminals
    G09766912Courtesy of KIA MOTORS AMERICA, INC.
  2. If continuity is not specified, inspect the switch

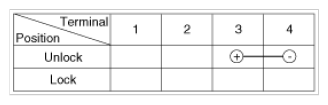

    Fig 2: Tailgate Latch Terminals Continuity Chart
    G09766913Courtesy of KIA MOTORS AMERICA, INC.
