Automatic Transaxle Control System - A6LF2
>>
Components And Components Location
>>
Component Location
Component Location

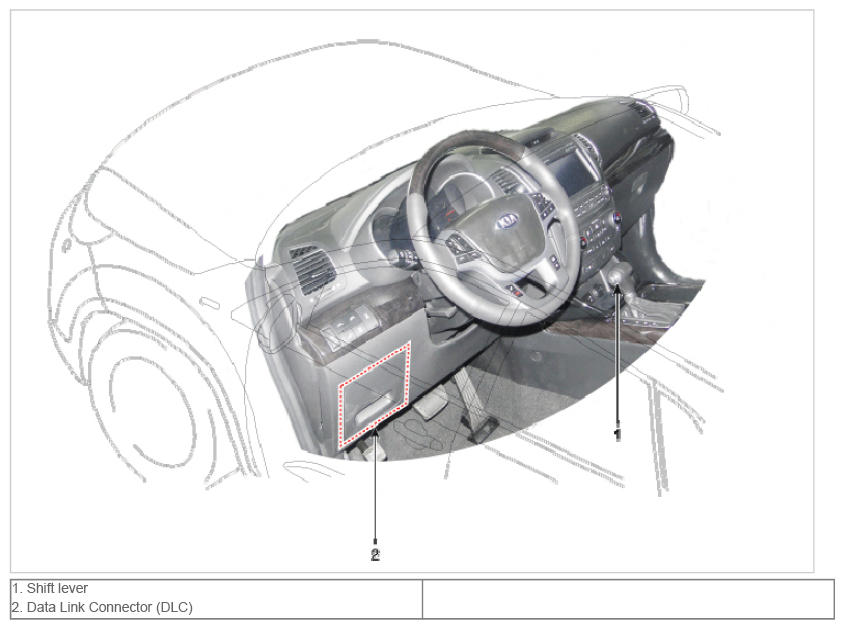

Fig 1: Automatic Transaxle Control System Components Location - A6LF2 (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

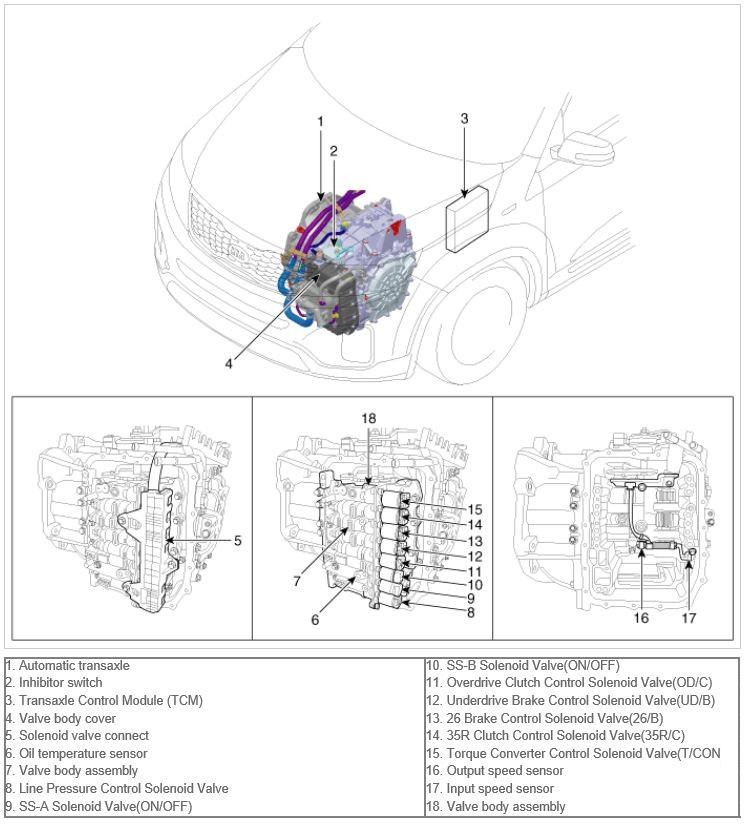

Fig 2: Automatic Transaxle Control System Components Location - A6LF2 (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
