Repair Procedures: Installation

Install in the reverse order of removal.
CAUTION: If the oil seal on the transaxle case side is damaged and fluid is leaking, replace the oil seal with a new unit. When installing the new oil seal, use the specialized tool (oil seal installer, 09453-3L241).
NOTE:
After replacement or reinstallation procedure of the automatic transaxle assembly, must perform procedures below.
- Should be adding automatic transaxle fluid when reinstall the transaxle.
  (Refer to "FLUID ")
- After replacing the automatic transaxle, clear the Diagnostic Trouble Code (DTC) using the GDS tool. DTC cannot be cleared by disconnecting the battery.
- When replacing the automatic transaxle, reset the automatic transaxle's values by using the GDS.

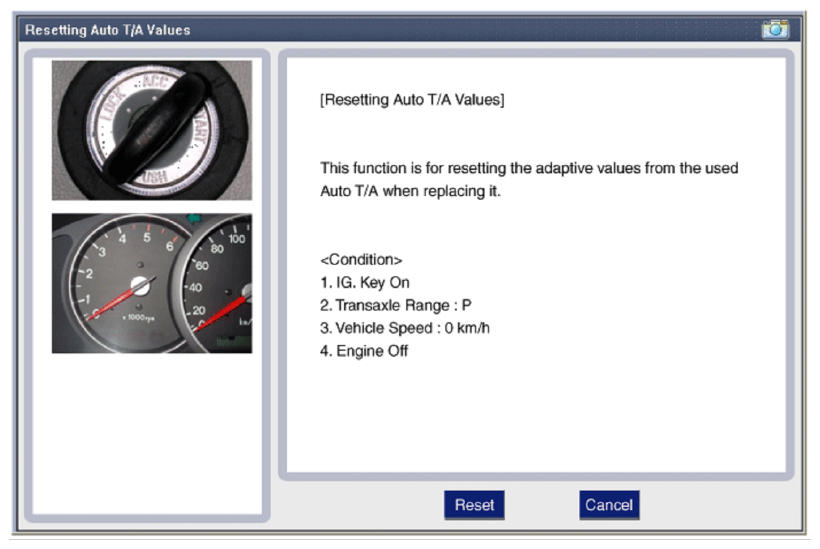

  Fig 1: Display - Resetting Auto T/A Values (1 Of 3)
  Courtesy of KIA MOTORS AMERICA, INC.

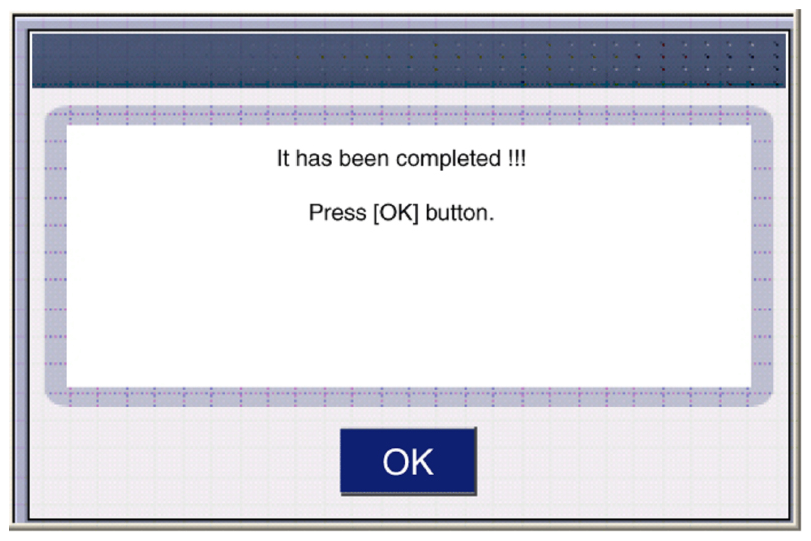

  Fig 2: Display - Resetting Auto T/A Values (2 Of 3)
  Courtesy of KIA MOTORS AMERICA, INC.

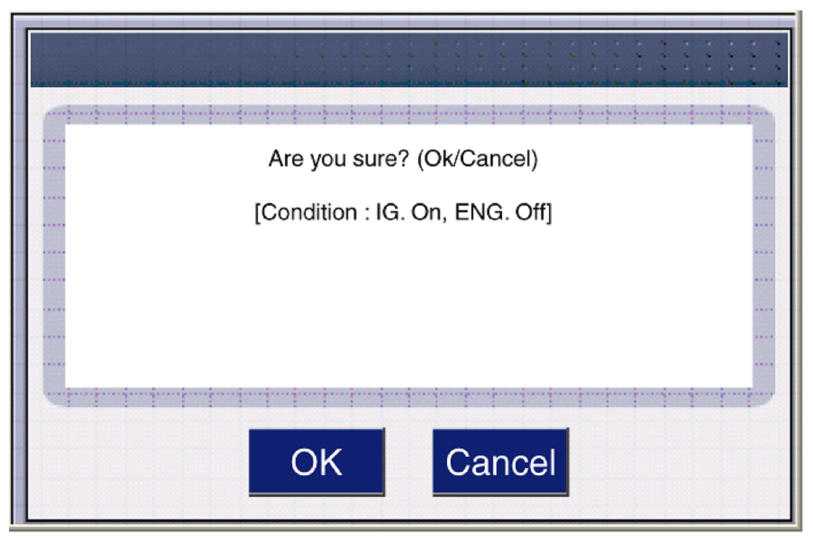

  Fig 3: Display - Resetting Auto T/A Values (3 Of 3)
  Courtesy of KIA MOTORS AMERICA, INC.
- Perform TCM learning after replacing the transaxle to prevent slow transaxle response, jerky acceleration and jerky startup.
  (Refer to "REPAIR PROCEDURES ")
