Automatic Transaxle Control System - 1.6L
>>
Components And Components Location
>>
Components Location
Components Location

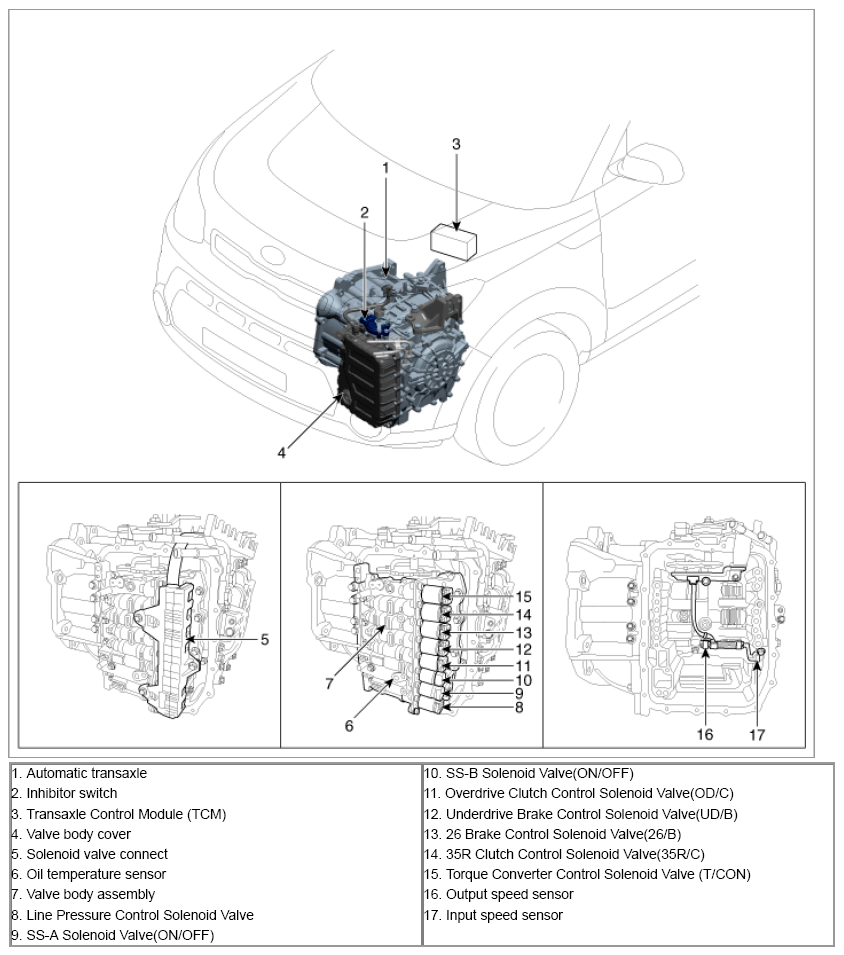

Fig 1: Automatic Transaxle Components Location
Courtesy of KIA MOTORS AMERICA, INC.

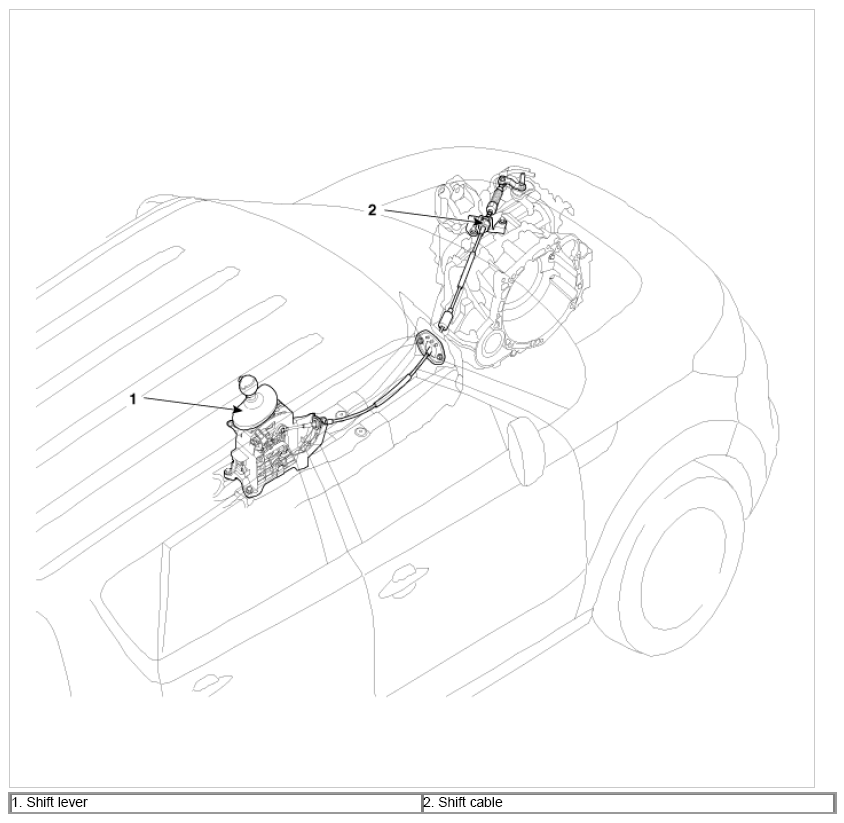

Fig 2: Shift Lever & Cable Components Location
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
