Smart Key Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IGN ON, select the "SMK STATUS INFORMATION".

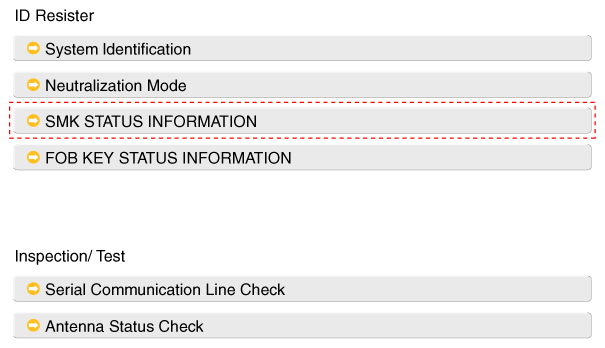

Fig 1: Screen Display - ID Register
G10744851Courtesy of KIA MOTORS AMERICA, INC.

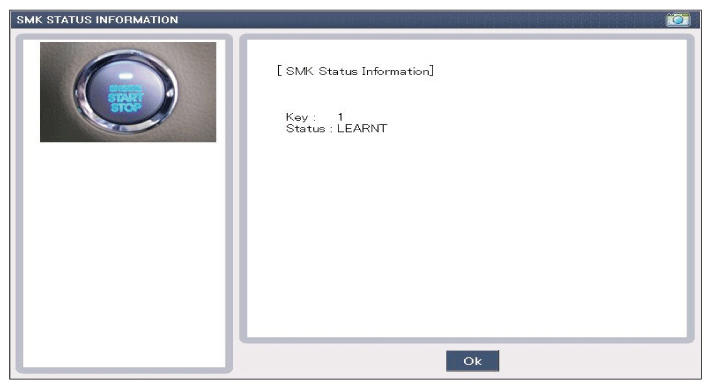

Fig 2: Screen Display - SMK Status Information
G10744852Courtesy of KIA MOTORS AMERICA, INC.
