Neutralization Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IGN ON, select the "Neutralization mode".

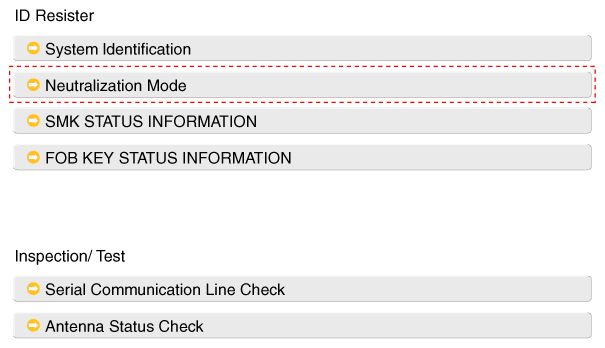

    Fig 1: GDS Display Screen - Neutralization Status (1 Of 2)
    G11785544Courtesy of KIA MOTORS AMERICA, INC.

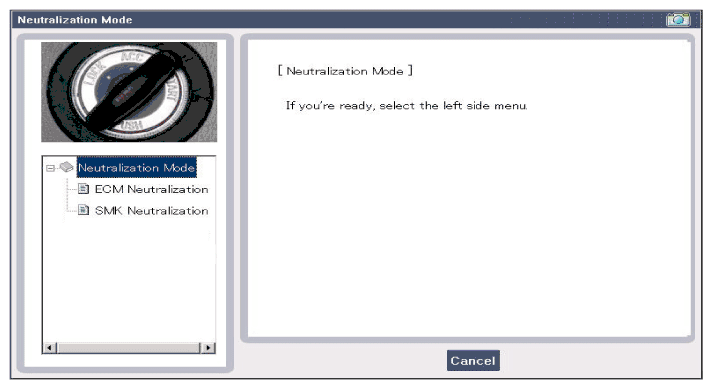

    Fig 2: GDS Display Screen - Neutralization Status (2 Of 2)
    G11785545Courtesy of KIA MOTORS AMERICA, INC.

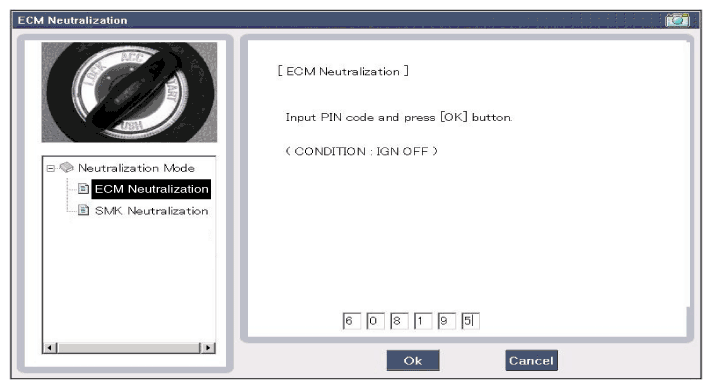

    Fig 3: GDS Display Screen - ECM Neutralization Status (1 Of 2)
    G11785546Courtesy of KIA MOTORS AMERICA, INC.

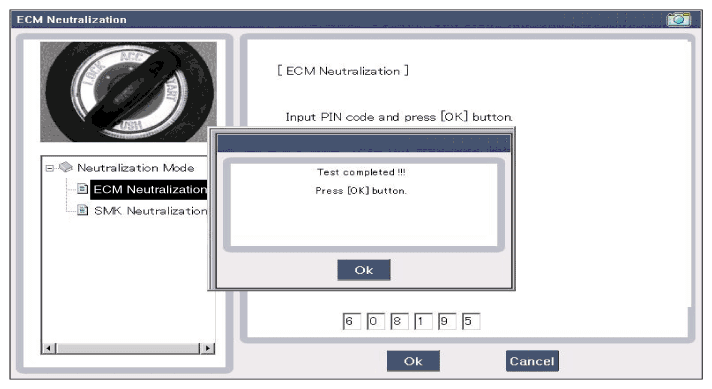

    Fig 4: GDS Display Screen - ECM Neutralization Status (2 Of 2)
    G11785547Courtesy of KIA MOTORS AMERICA, INC.

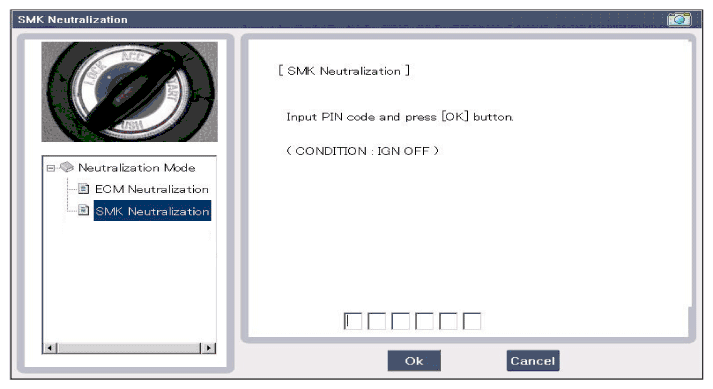

    Fig 5: GDS Display Screen - SMK Neutralization Status (1 Of 3)
    G11785548Courtesy of KIA MOTORS AMERICA, INC.
    Fig 6: GDS Display Screen - SMK Neutralization Status (2 Of 3)
    G11785549Courtesy of KIA MOTORS AMERICA, INC.

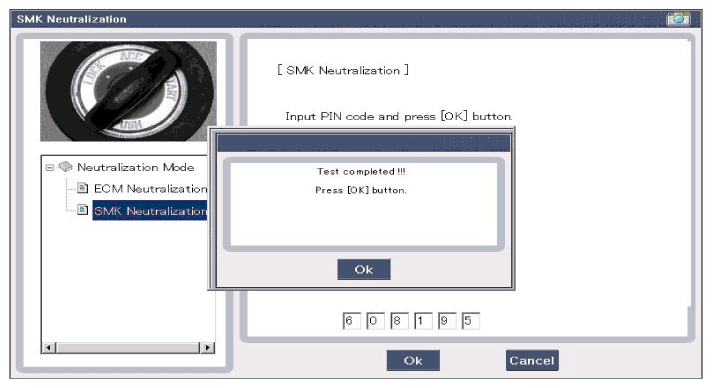

    Fig 7: GDS Display Screen - SMK Neutralization Status (3 Of 3)
    G11785550Courtesy of KIA MOTORS AMERICA, INC.
COMPONENT DESCRIPTION

No Item name Unit
1 SSB switch2 -
2 ACC -
3 IGN1 -
4 Gear "P" Position -
5 Brake switch -
6 FL Door Lock Button -
7 FR Door Lock Button -
8 Trunk Lid switch -
9 Battery Voltage -
10 Alternator Voltage -
11 KEY out Indicator Lamp -
12 Immobilizer Lamp -
13 External Buzzer -
COMPONENT DESCRIPTION

No. Item name Condition
1 Immo Indicator Lamp Ignition switch ON
Engine off
2 External Buzzer Ignition switch ON
Engine off
3 Interior Antenna 1 Active Ignition switch ON
Engine off
4 Interior Antenna 2 Active Ignition switch ON
Engine off
5 Trunk Antenna Active Ignition switch ON
Engine off
6 Bumper Antenna Active Ignition switch ON
Engine off
7 DRV DR Antenna Active Ignition switch ON
Engine off
8 AST DR Antenna Active Ignition switch ON
Engine off
