Smart Key Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "SMK STATUS INFO".

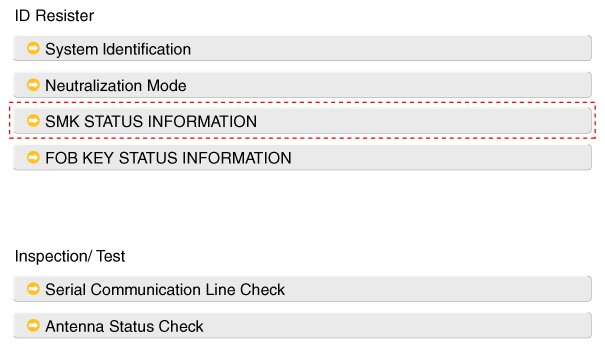

Fig 1: GDS Display Screen - SMK Status Info (1 Of 2)
G11785542Courtesy of KIA MOTORS AMERICA, INC.

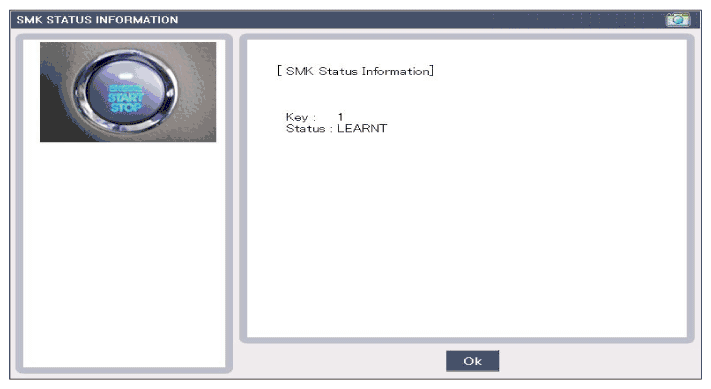

Fig 2: GDS Display Screen - SMK Status Info (2 Of 2)
G11785543Courtesy of KIA MOTORS AMERICA, INC.
