Components and Components Location: Components

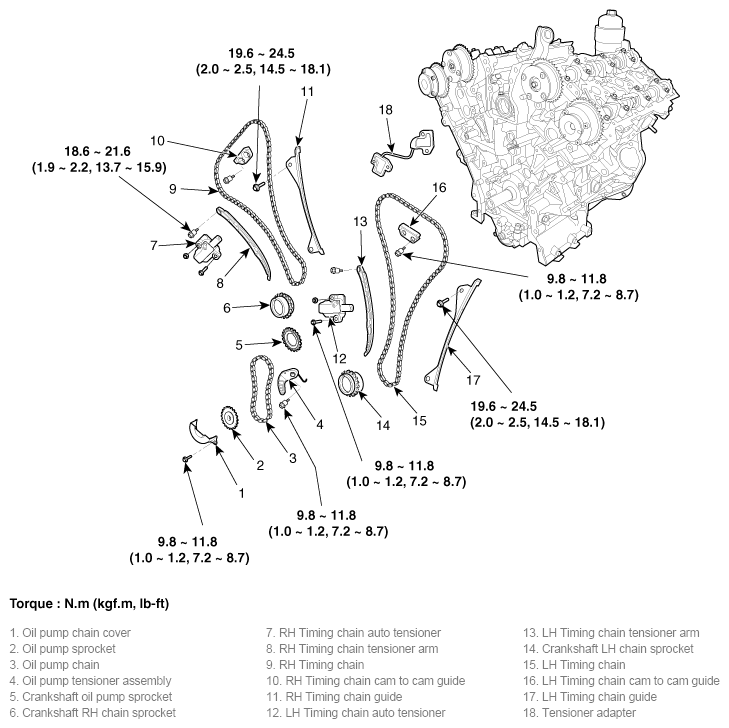

Fig 1: Timing System Components With Torque Specification (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: Timing System Components With Torque Specification (2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.
