High Pressure Fuel Line

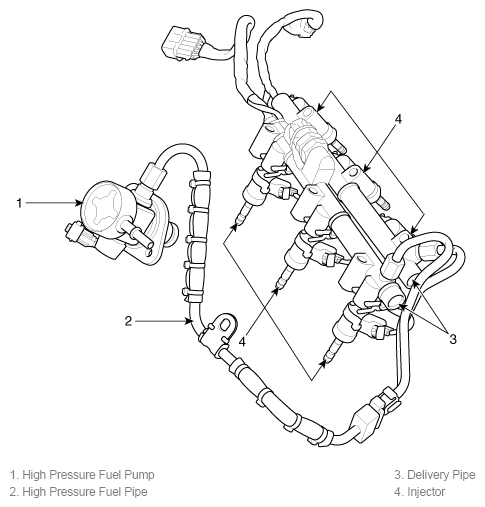

Fig 1: High Pressure Fuel Line Components Location
G11784123Courtesy of KIA MOTORS AMERICA, INC.
WARNING: In case of removing the high pressure fuel pump, high pressure fuel pipe, delivery pipe, and injector, there may be injury caused by leakage of the high pressure fuel. So don't do any repair work right after engine stops.
