Home >> Kia >> 2016 >> Cadenza Base >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle System >> Components and Components Location >> Components

Components and Components Location: Components

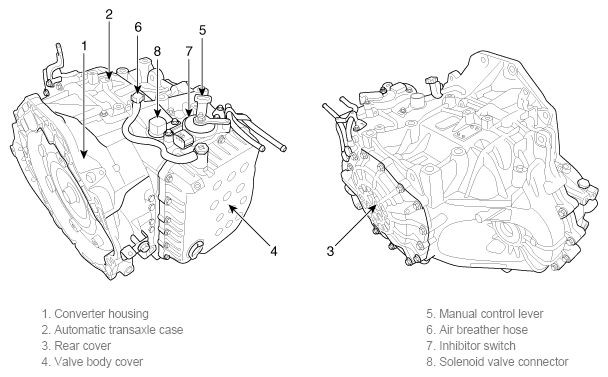

Fig 1: Automatic Transaxle System Components Location
G11784224Courtesy of KIA MOTORS AMERICA, INC.
