Home >> Kia >> 2016 >> Cadenza Base >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Hydraulic System >> Oil Pump >> Components and Components Location >> Components

Components and Components Location: Components

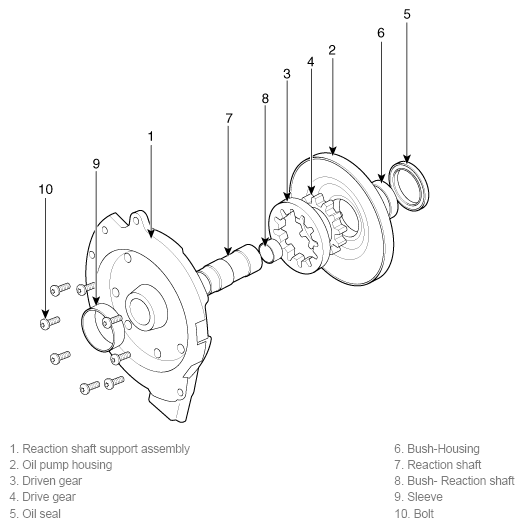

Fig 1: Oil Pump Components Location

G11784247

Courtesy of KIA MOTORS AMERICA, INC.
