FOB Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IGN ON, select the "FOB KEY STATUS INFO".

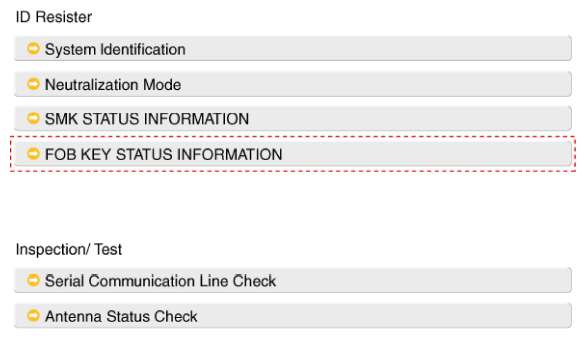

Fig 1: Screen Display - FOB Key Status Information (1 Of 2)
G11792126Courtesy of KIA MOTORS AMERICA, INC.

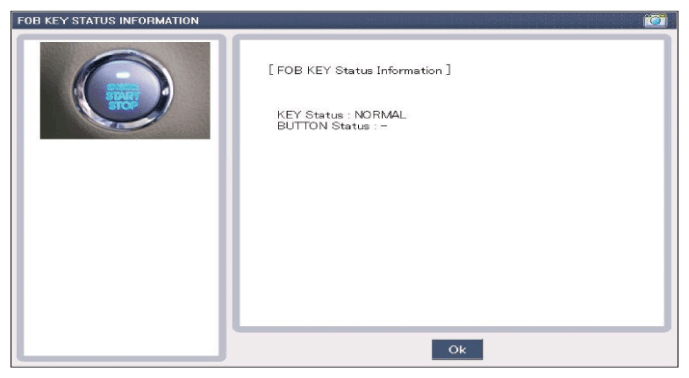

Fig 2: Screen Display - FOB Key Status Information (2 Of 2)
G11792127Courtesy of KIA MOTORS AMERICA, INC.
