Smart Key Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IGN ON, select the "SMK STATUS INFO".

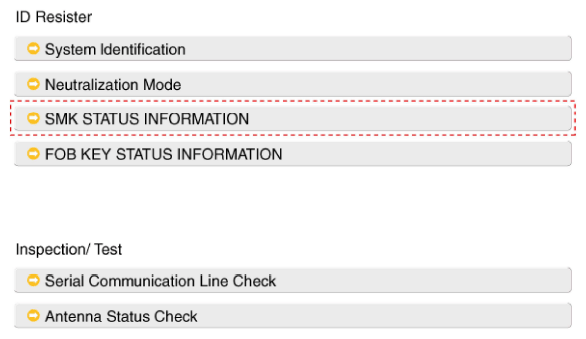

Fig 1: Screen Display - SMK Status Information (1 Of 2)
G11792128Courtesy of KIA MOTORS AMERICA, INC.

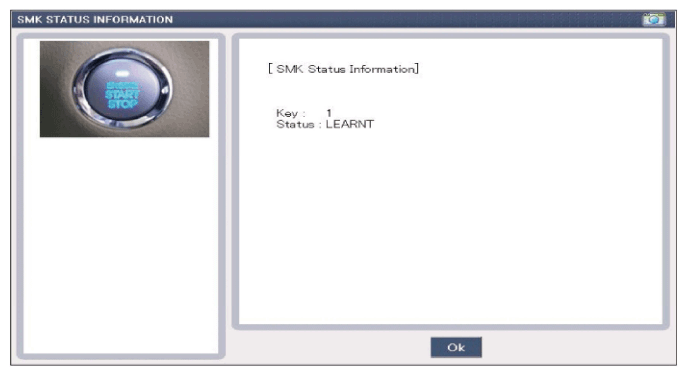

Fig 2: Screen Display - SMK Status Information (2 Of 2)
G11792129Courtesy of KIA MOTORS AMERICA, INC.
