Components Location

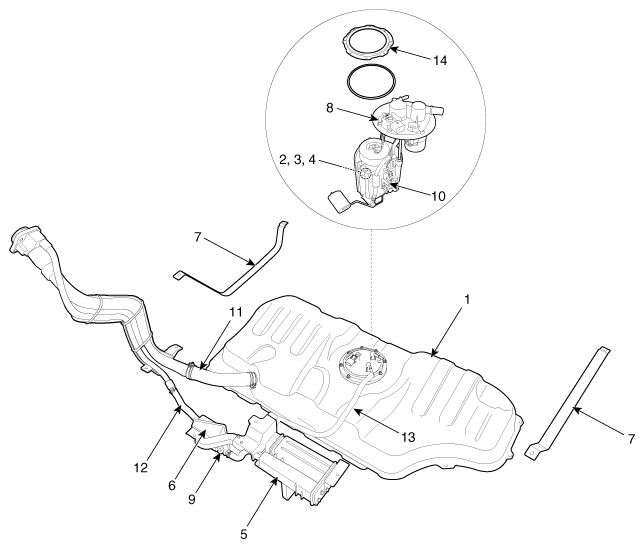

[LEV2 Type]

Fig 1: Fuel Delivery System Components Location - LEV2 Type

Courtesy of KIA MOTORS AMERICA, INC.

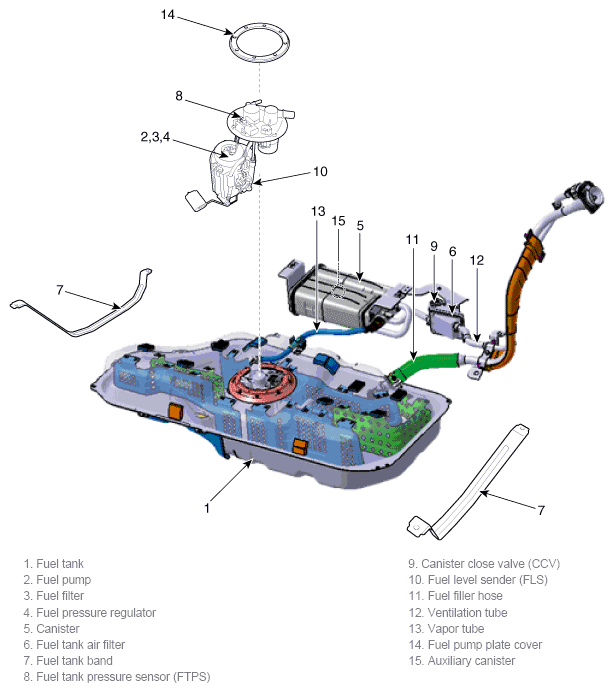

[SULEV Type]

Fig 2: Fuel Delivery System Components Location - SULEV Type

Courtesy of KIA MOTORS AMERICA, INC.

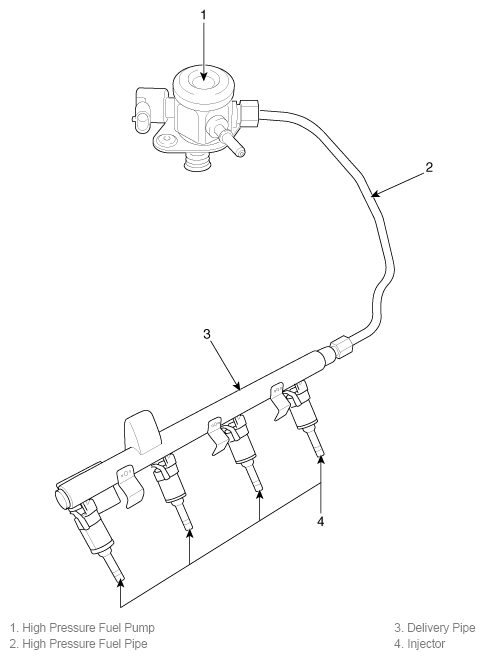

[High Pressure Fuel Line]

Fig 3: Fuel Delivery System High Pressure Fuel Line

Courtesy of KIA MOTORS AMERICA, INC.

WARNING: In case of removing the high pressure fuel pump, high pressure fuel pipe, delivery pipe, and injector, there may be injury caused by leakage of the high pressure fuel. So don't do any repair work right after engine stops.
