Repair Procedures: Inspection

WARNING: This page is about a different car, the 2015 Kia Forte5, 2015 Kia Forte Koup, and 2015 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

Check for resistance between terminals in each switch position.

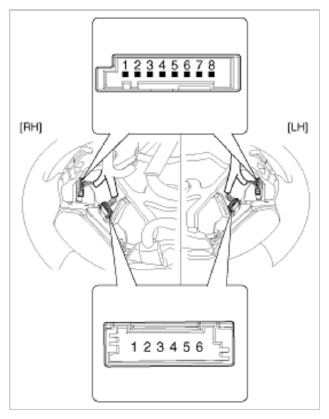

Fig 1: Audio Remote Control System Connector Terminals
Courtesy of KIA MOTORS AMERICA, INC.

AUDIO RESISTANCE SPECIFICATION (LH)

Switch	Connector Terminal	Resistance (±5%)
Seek up	2-7	430 Ω
Seek down	2-7	1.1 kΩ
Mode	2-7	2.11 kΩ
Mute	2-7	3.11 kΩ
Volume up	2-7	4.61 kΩ
Volume down	2-7	6.81 kΩ

RESISTANCE SPECIFICATION (CRUISE + FLEX, RH)

Switch	Connector Terminal	Resistance (±5%)
Cancel	2-7	180 Ω
SET	2-7	330 Ω
Resume	2-7	550 Ω
Cruise	2-7	880 Ω
Flex steer	2-7	5.54 kΩ

RESISTANCE SPECIFICATION (BLUETOOTH + VOICE, LH)

Switch	Connector Terminal	Resistance (±5%)
Voice	2-5	10.71 kΩ
End of call	2-5	18.91 kΩ
Call	2-5	40.91 kΩ

RESISTANCE SPECIFICATION (TRIP, RH)

Switch	Connector Terminal	Resistance (±5%)
Trip	2-5	330 Ω
Reset	2-5	550 Ω
Select	2-5	880 Ω
