Repair Procedures: Removal

WARNING: This page is about a different car, the 2015 Kia Forte5, 2015 Kia Forte Koup, and 2015 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the heater & A/C control unit.

    Refer to " HEATER & A/C CONTROL UNIT (MANUAL) "

    Refer to "HEATER & A/C CONTROL UNIT (DATC) "

  3. Remove the floor console assembly.
  4. Remove the center lower cover (A) after loosening the screws.

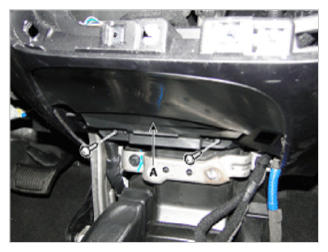

    Fig 1: Center Lower Cover
    G09744272Courtesy of KIA MOTORS AMERICA, INC.
  5. Remove the BCM unit. (in the order as below)
    1. Disconnect the connectors (A) from the BCM unit.
    2. Loosen the mounting nuts (B).
    3. Remove the BCM unit (D) after disconnecting the connector (C) from the BCM unit.

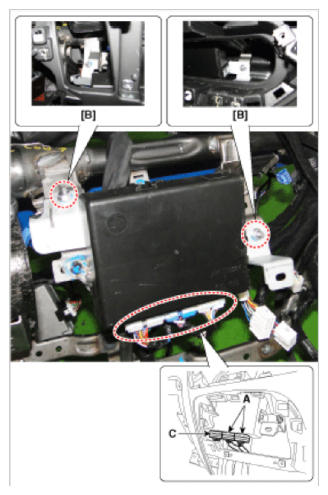

      Fig 2: BCM Unit, Connector And Mounting Bolts
      G09744273Courtesy of KIA MOTORS AMERICA, INC.
