Section 12 (Timing System - 1.8L)
>>
Timing Chain
>>
Components And Components Location
>>
Components
Components And Components Location: Components
WARNING:
This page is about a different variant/trim than selected.

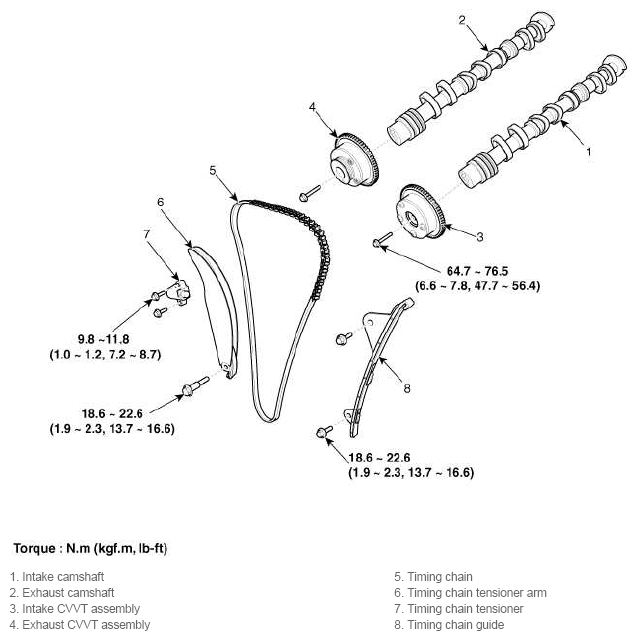

Fig 1: Timing Chain Components Location
Courtesy of KIA MOTORS AMERICA, INC.
