Home >> Kia >> 2016 >> Forte EX >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Hydraulic System - 2.0L >> Oil Pump >> Components And Components Location >> Components

Components And Components Location: Components

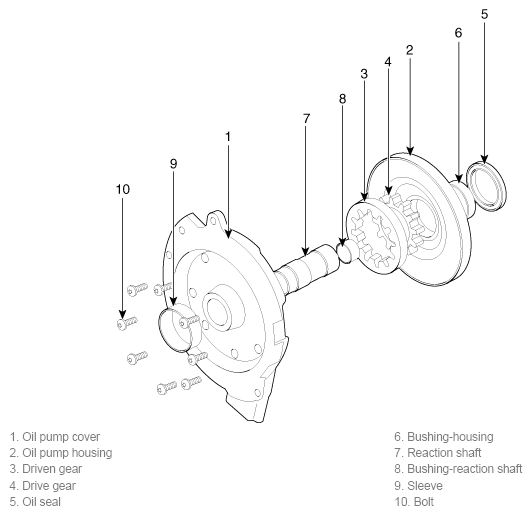

Fig 1: Oil Pump Components Location

G11797120

Courtesy of KIA MOTORS AMERICA, INC.
