Home >> Kia >> 2016 >> Forte LX, Automatic Trans >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Fuel Delivery System - 1.8L >> Components And Components Location >> Components Location

Components Location

[SULEV Type]

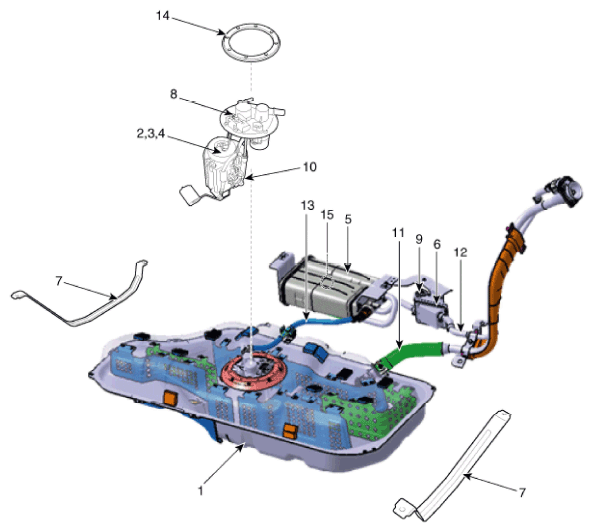

Fig 1: Fuel Delivery System Components Location (SULEV Type)
G11793961Courtesy of KIA MOTORS AMERICA, INC.

[LEV2 Type]

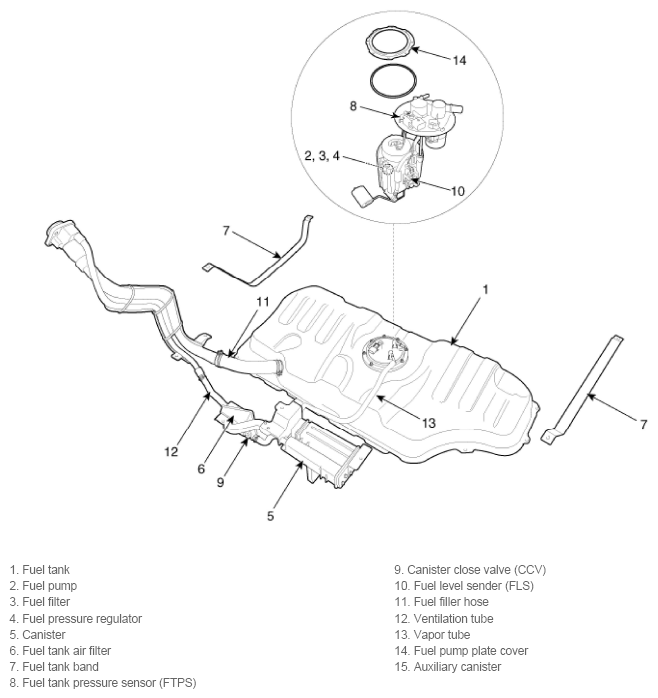

Fig 2: Fuel Delivery System Components Location (LEV2 Type)
G11793962Courtesy of KIA MOTORS AMERICA, INC.
