Forte5 SX, Automatic Trans
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System - 1.6L
>>
Camshaft Position Sensor (CMPS)
>>
Troubleshooting
>>
Wave Form
Wave Form

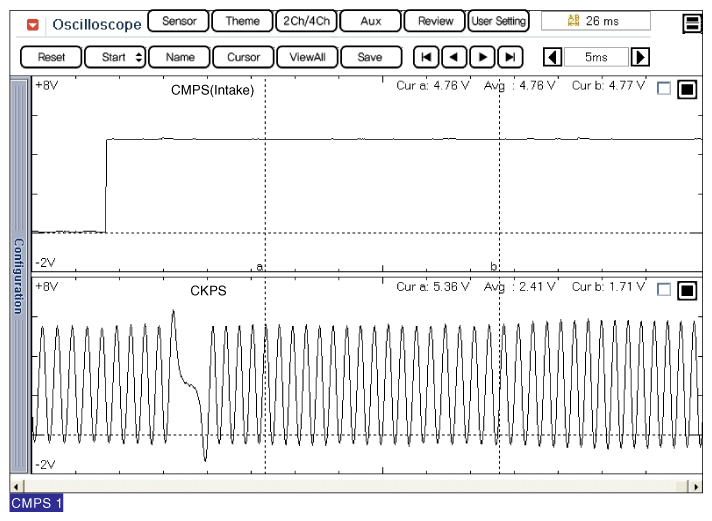

Fig 1: Camshaft Position Sensor (CMPS) Waveform (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

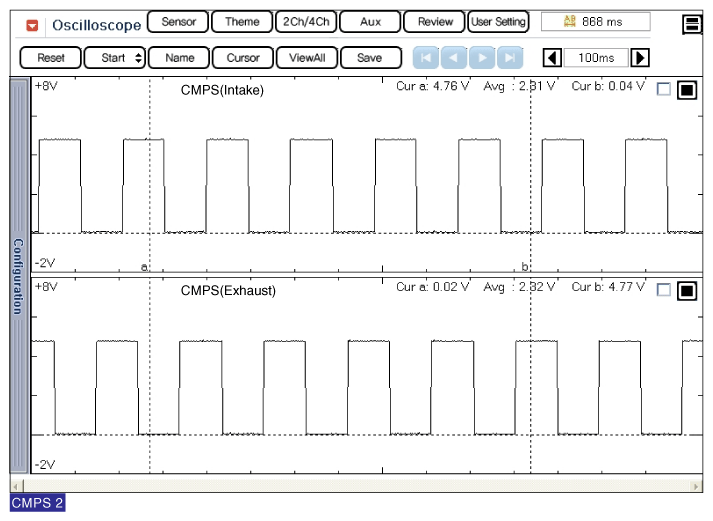

Fig 2: Camshaft Position Sensor (CMPS) Waveform (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
