Circuit Diagram

(M/T)

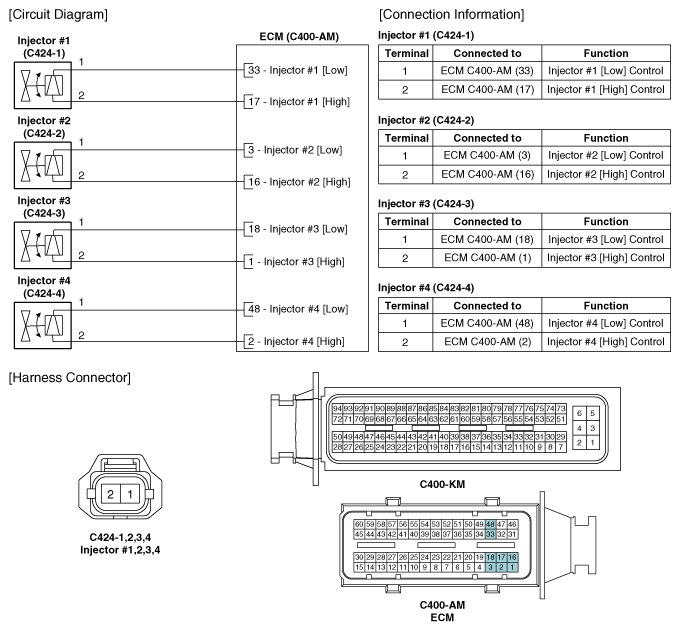

Fig 1: GDI Injector Circuit Diagram - M/T

G11794918

Courtesy of KIA MOTORS AMERICA, INC.

(A/T)

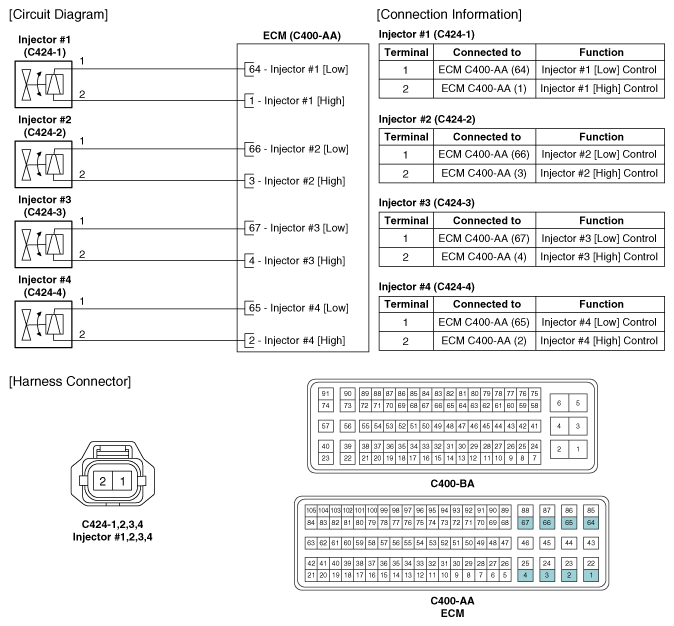

Fig 2: GDI Injector Circuit Diagram - A/T

G11794919

Courtesy of KIA MOTORS AMERICA, INC.
